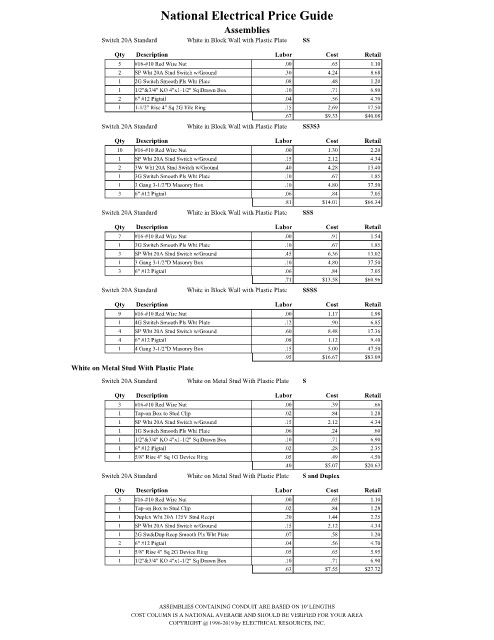

Page 2806 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 20A Standard White in Block Wall with Plastic Plate SS
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 SP Wht 20A Stnd Switch w/Ground .30 4.24 8.68
1 2G Switch Smooth Pls Wht Plate .08 .48 1.20
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.67 $9.33 $40.08
Switch 20A Standard White in Block Wall with Plastic Plate SS3S3
Qty Description Labor Cost Retail
10 #16-#10 Red Wire Nut .00 1.30 2.20
1 SP Wht 20A Stnd Switch w/Ground .15 2.12 4.34
2 3W Wht 20A Stnd Switch w/Ground .40 4.28 13.40
1 3G Switch Smooth Pls Wht Plate .10 .67 1.85
1 3 Gang 3-1/2"D Masonry Box .10 4.80 37.50
3 6" #12 Pigtail .06 .84 7.05
.81 $14.01 $66.34
Switch 20A Standard White in Block Wall with Plastic Plate SSS
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 3G Switch Smooth Pls Wht Plate .10 .67 1.85
3 SP Wht 20A Stnd Switch w/Ground .45 6.36 13.02
1 3 Gang 3-1/2"D Masonry Box .10 4.80 37.50
3 6" #12 Pigtail .06 .84 7.05
.71 $13.58 $60.96
Switch 20A Standard White in Block Wall with Plastic Plate SSSS
Qty Description Labor Cost Retail
9 #16-#10 Red Wire Nut .00 1.17 1.98
1 4G Switch Smooth Pls Wht Plate .12 .90 6.85
4 SP Wht 20A Stnd Switch w/Ground .60 8.48 17.36
4 6" #12 Pigtail .08 1.12 9.40
1 4 Gang 3-1/2"D Masonry Box .15 5.00 47.50
.95 $16.67 $83.09
White on Metal Stud With Plastic Plate
Switch 20A Standard White on Metal Stud With Plastic Plate S

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 SP Wht 20A Stnd Switch w/Ground .15 2.12 4.34
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.40 $5.07 $20.63
Switch 20A Standard White on Metal Stud With Plastic Plate S and Duplex
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Duplex Wht 20A 125V Stnd Recpt .20 1.44 2.25
1 SP Wht 20A Stnd Switch w/Ground .15 2.12 4.34
1 2G Sw&Dup Recp Smooth Pls Wht Plate .07 .58 1.20
2 6" #12 Pigtail .04 .56 4.70
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.63 $7.55 $27.72

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
