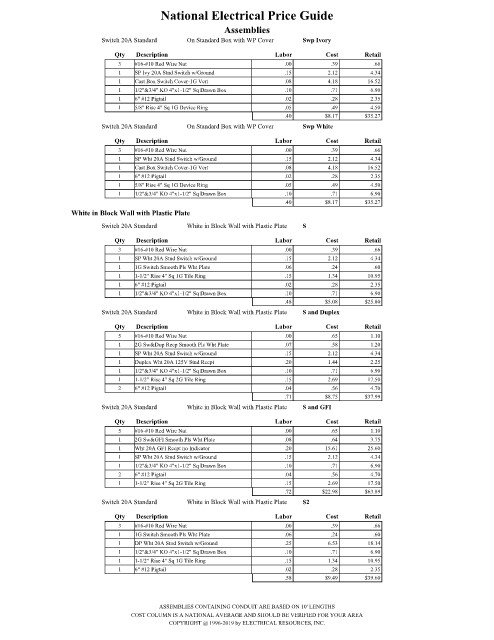

Page 2804 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 20A Standard On Standard Box with WP Cover Swp Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 SP Ivy 20A Stnd Switch w/Ground .15 2.12 4.34
1 Cast Box Switch Cover-1G Vert .08 4.18 16.52
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.40 $8.17 $35.27
Switch 20A Standard On Standard Box with WP Cover Swp White
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 SP Wht 20A Stnd Switch w/Ground .15 2.12 4.34
1 Cast Box Switch Cover-1G Vert .08 4.18 16.52
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.40 $8.17 $35.27
White in Block Wall with Plastic Plate
Switch 20A Standard White in Block Wall with Plastic Plate S

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 SP Wht 20A Stnd Switch w/Ground .15 2.12 4.34
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.48 $5.08 $25.80
Switch 20A Standard White in Block Wall with Plastic Plate S and Duplex
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 2G Sw&Dup Recp Smooth Pls Wht Plate .07 .58 1.20
1 SP Wht 20A Stnd Switch w/Ground .15 2.12 4.34
1 Duplex Wht 20A 125V Stnd Recpt .20 1.44 2.25
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
2 6" #12 Pigtail .04 .56 4.70
.71 $8.75 $37.99
Switch 20A Standard White in Block Wall with Plastic Plate S and GFI

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 2G Sw&GFI Smooth Pls Wht Plate .08 .64 3.75
1 Wht 20A GFI Recpt no Indicator .20 15.61 25.60
1 SP Wht 20A Stnd Switch w/Ground .15 2.12 4.34
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.72 $22.98 $63.89
Switch 20A Standard White in Block Wall with Plastic Plate S2
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 DP Wht 20A Stnd Switch w/Ground .25 6.53 18.14
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
.58 $9.49 $39.60

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
