FAN-PEDIA SHAFT SEALS
Published by
Twin City Fan & Blower
©2017 TCF.COM

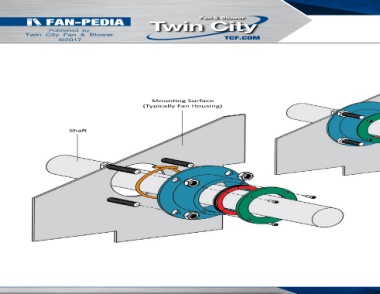

Single Ring Mechanical Shaft Seal
(Vendor Supplied)
Also Known As:
- Single Carbon Ring
- Floating Circumferential Carbon Ring Seal
Mounting Surface - Labyrinth Shaft Seal
(Typically Fan Housing)
- John Crane
- Flow Serve
- Eagle Burgmann
Shaft
Mounting Hardware
Mounting Studs (bolts welded inside housing),
Nuts, Cap Screws
Seal Housing
Split Carbon Ring
Cover Plate
PTFE Joint Sealant
