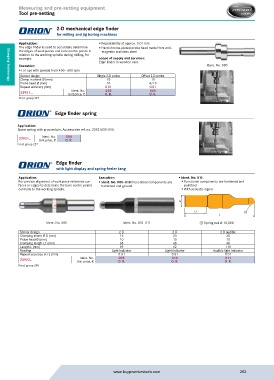

Page 202 - Buy Premium Tools ORION Catalogue

Measuring and pre-setting equipment
Tool pre-setting

2-D mechanical edge finder
for milling and jig boring machines

Application: ƒ Repeatability of approx. 0.01 mm
The edge finder is used to accurately determine ƒ Hard chrome-plated probe head made from anti-
the edges of workpieces and bore centre points in magnetic stainless steel
relation to the working spindle during milling, for
example. scope of supply and services:
Edge finder in wooden case
Execution: Ident. No. 030
ƒ For use with speeds from 400 - 600 rpm
Sensor design Single 2-D probe Offset 2-D probe
Clamp in shank Ø (mm) 10 10
Probe head Ø (mm) 10 4/10
Clamping Technology
Repeat accuracy (mm) 0.01 0.01
030
050
Ident. No.
23921... Unit price, € O. R. O. R.
Prod. group 227
Edge finder spring

Application:
Spare spring with grooved pin. Accessories ref. no. 23921030-050.
500
Ident. No.
23921... Unit price, € O. R.
Prod. group 227

Edge finder
with light display and spring feeler tang

Application: Execution: ƒ Ident. No. 011:
For precise alignment of workpiece reference sur- ƒ Ident. No. 005–010: Functional components are ƒ Functional components are hardened and
faces or edges to determine the bore centre points hardened and ground polished
centrally to the working spindle. ƒ With acoustic signal

D

L1 1
L
Ident. No. 005 Ident. No. 010–011 ① Spring ball Ø 10,000
Sensor design 2-D 2-D 2-D audible
Clamping shank Ø D (mm) 16 20 20
Probe head Ø (mm) 10 10 10
Clamping length L1 (mm) 35 45 45
Length L (mm) 99 92 119
Reading Light indicator Light indicator Audible light indicator
Repeat accuracy (+/-) (mm) 0.01 0.01 0.01
010
011
005
Ident. No.
23923... Unit price, € O. R. O. R. O. R.
Prod. group 298
