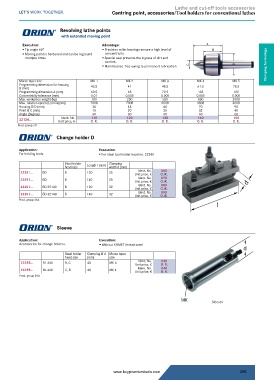

P. 205
Lathe and cut-off tools accessories
Centring point, accessories/Tool holders for conventional lathes
Revolving lathe points
with extended moving point
Execution: Advantage:
Tip angle 60° Precision roller bearings ensure a high level of
Moving point is hardened and can be reground concentricity
multiple times Special seal prevents the ingress of dirt and
coolant.
Maintenance-free owing to permanent lubrication Clamping Technology
Morse taper size MK 1 MK 2 MK 3 MK 4 MK 5
Programming dimension for housing 43.5 41 48.5 61.5 78.5
B (mm)
Programming dimension A (mm) 60.5 65 79.5 103 129
Concentricity tolerance (mm) 0.01 0.005 0.005 0.005 0.005
Max. workpiece weight (kg) 100 200 500 800 2000
Max. rotation speed (U/min(rpm)) 7000 7000 5000 3800 3000
Housing Ø D (mm) 36 45 60 70 90
Point Ø C (mm) 15 20 25 32 40
Angle (Degree) 60 60 60 60 60
130
140
150
110
120
Ident. No.
22124... Unit price, € O. R. O. R. O. R. O. R. O. R.
Prod. group 211
Change holder D
Application: Execution:
For holding tools. For steel tool holder head no. 22240
Steel holder Clamping
head size Length l (mm) width d (mm)
060
Ident. No.
22251... BD B 120 25 Unit price, € O. R.
Ident. No.
070
22251... BD B 140 25 Unit price, € O. R. d
080
Ident. No.
22251... BD 25140 B 120 32 Unit price, € O. R.
Ident. No.
090
22251... BD 32140 B 140 32 Unit price, € O. R.
Prod. group 264
l
Sleeve
Application: Execution:
Accessories for change holders. Without KOMET thread steel
d
Steel holder Clamping Ø d Morse taper
head size (mm) size
030
Ident. No.
22255... BL 340 B, C 40 MK 3 Unit price, € O. R.
040
Ident. No.
22255... BL 440 C, B 40 MK 4 Unit price, € O. R.
Prod. group 264
MK Sleeves
www.buypremiumtools.com 205
