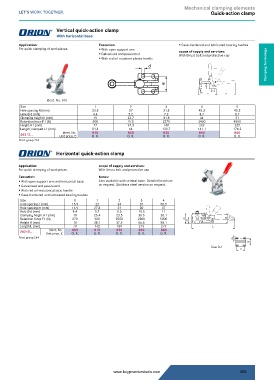

P. 209
Mechanical clamping elements
Quick-action clamp
Vertical quick-action clamp
With horizontal base
Application: Execution: Case-hardened and lubricated bearing bushes
For quick clamping of workpieces. With open support arm scope of supply and services:
Galvanised and passivated With thrust bolt and protective cap
With red oil-resistant plastic handle
d Clamping Technology
m
h
c
F1
L1 L2
Ident. No. 810
Size 1 2 3 4 5
Hole spacing M (mm) 23.8 27 31.8 45.3 45.2
Hole Ø d (mm) 4.4 5.2 7.2 8.7 8.7
Clamping height h (mm) 19 22.7 31.8 44 51
Retention force F1 (N) 500 910 2270 3400 4500
Height H1 (mm) 77 97.3 140 202 225
Length, clamped L1 (mm) 51.4 64 139.7 141.1 176.2
820
850
840
810
830
Ident. No.
26212... Unit price, € O. R. O. R. O. R. O. R. O. R.
Prod. group 264
Horizontal quick-action clamp
Application: scope of supply and services:
For quick clamping of workpieces. With thrust bolt and protective cap
Execution: Notes:
With open support arm and horizontal base Also available with vertical base. Detailed brochure
Galvanised and passivated on request. Stainless steel version on request.
With red oil-resistant plastic handle
Case-hardened and lubricated bearing bushes
Size 0 1 2 3 4
Hole spacing c (mm) 15.9 22 34 37 50.5
Hole spacing m (mm) 15.9 27.8 24 30 37
Hole Ø d (mm) 4.4 5.2 8.5 10.5 11
Clamping height H1 (mm) 10 25.4 23.5 36.5 38.1
Retention force F1 (N) 270 900 2500 2800 5000 H h H
Height H (mm) 18 38.1 37.5 56.5 58.1 F1 F2
Length L (mm) 79 142 189 279 279 L
810
805
Ident. No.
820
830
840
26215... Unit price, € O. R. O. R. O. R. O. R. O. R.
Prod. group 264 d
m
Size 0-1
c
