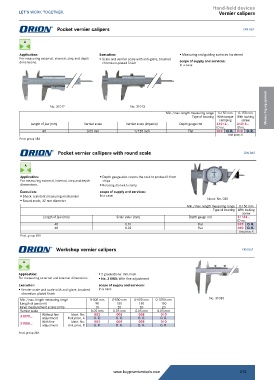

P. 212
Hand-held devices
Vernier calipers
Pocket vernier calipers DIN 862
Application: Execution: Measuring and guiding surfaces hardened
For measuring external, internal, step and depth Scale and vernier scale with anti-glare, brushed
dimensions. chromium-plated finish scope of supply and services:
In a case
No. 31012 No. 31013 Measuring equipment
Min./max. length measuring range 0-150 mm 0-150 mm
Type of locating With torque With locking
clamping screw
Length of jaw (mm) Vernier scale Vernier scale (imperial) Depth gauge rod 31012... 31013...
ID no. ID no.
40 0.05 mm 1/128 inch Flat 010 O. R. 010 O. R.
Unit price, €
Prod. group 3BA
Pocket vernier callipers with round scale DIN 862
Application: Depth gauge also covers the rack to protect it from
For measuring external, internal, step and depth chips
dimensions. Rotating dial with clamp
Execution: scope of supply and services:
Shock-resistant measuring mechanism In a case
Round scale, 32 mm diameter Ident. No. 020
Min./max. length measuring range 0-150 mm
Type of locating With locking
screw
Length of jaw (mm) Scale value (mm) Depth gauge rod 31163...
ID no.
40 0.01 Flat 010 O. R.
40 0.02 Flat 020 O. R.
Unit price, €
Prod. group 3BH
Workshop vernier calipers DIN 862
Application: 2 graduations: mm/inch
For measuring external and internal dimensions. No. 31080: With fine adjustment
Execution: scope of supply and services:
Vernier scale and scale with anti-glare, brushed In a case
chromium-plated finish
Min./max. length measuring range 0-300 mm 0-500 mm 0-800 mm 0-1000 mm No. 31080
Length of jaw (mm) 90 150 150 150
Inner measurement scales (mm) 10 20 20 20
Vernier scale 0.05 mm 0.05 mm 0.05 mm 0.05 mm
005
003
008
010
Ident. No.
31079... Without fine Unit price, € O. R. O. R. O. R. O. R.
adjustment
010
008
005
003
Ident. No.
31080... With fine Unit price, € O. R. O. R. O. R. O. R.
adjustment
Prod. group 3BA
