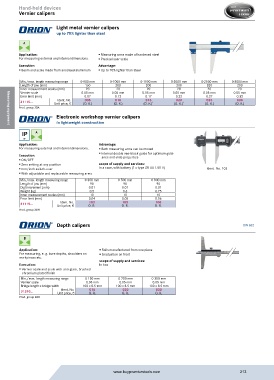

Page 213 - Buy Premium Tools ORION Catalogue

Hand-held devices
Vernier calipers

Light metal vernier calipers
up to 70% lighter than steel

Application: ƒ Measuring arms made of hardened steel
For measuring external and internal dimensions. ƒ Precise laser scale
Execution: Advantage:
ƒ Beam and scale made from anodised aluminium ƒ Up to 70% lighter than steel

Min./max. length measuring range 0-500 mm 0-1000 mm 0-1500 mm 0-2000 mm 0-2500 mm 0-3000 mm
Length of jaw (mm) 150 200 200 200 200 200
Inner measurement scales (mm) 20 20 20 20 20 20
Vernier scale 0.05 mm 0.05 mm 0.05 mm 0.05 mm 0.05 mm 0.05 mm
Error limit (mm) 0.07 0.12 0.17 0.22 0.27 0.32
015
020
005
010
030
025
Ident. No.
31115... Unit price, € (O. R.) (O. R.) (O. R.) + (O. R.) + (O. R.) (O. R.)
Prod. group 3BA
Electronic workshop vernier calipers
in lightweight construction
Measuring equipment
Application: Advantage:
For measuring external and internal dimensions. ƒ Both measuring arms can be moved
Execution: ƒ Internal double vee-block guide for optimum guid-
ance and slide properties
ƒ ON/OFF
ƒ Zero setting at any position scope of supply and services:
ƒ mm/inch switch-over In a case, with battery (1 x type SR 44 1.55 V) Ident. No. 103
ƒ With adjustable and replaceable measuring arms
Min./max. length measuring range 0-300 mm 0-500 mm 0-800 mm
Length of jaw (mm) 90 90 90
Digit increment (mm) 0.01 0.01 0.01
Weight (kg) 0.5 0.6 0.75
Inner measurement scales (mm) 10 10 10
Error limit (mm) 0.04 0.05 0.06
108
105
103
Ident. No.
31115... Unit price, € O. R. O. R. O. R.
Prod. group 3BH
Depth calipers DIN 862

Application: ƒ Rails manufactured from one piece
For measuring, e. g. bore depths, shoulders on ƒ Graduation on front
workpieces etc.
scope of supply and services:
Execution: In box
ƒ Vernier scale and scale with anti-glare, brushed
chromium plated finish
Min./max. length measuring range 0-150 mm 0-200 mm 0-300 mm
Vernier scale 0.05 mm 0.05 mm 0.05 mm
Bridge length x bridge width 100 x 8.5 mm 100 x 8.5 mm 100 x 8.5 mm
Ident. No.
030
015
020
31240... Unit price, € O. R. O. R. O. R.
Prod. group 3BB
