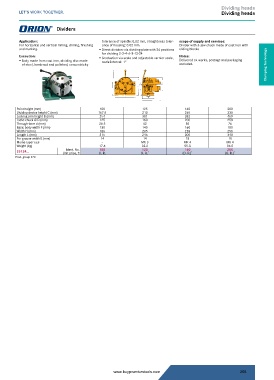

P. 208
Dividing heads
Dividing heads
Dividers
Application: tolerance of spindle: 0.02 mm, straightness toler- scope of supply and services:
For horizontal and vertical milling, drilling, finishing ance of housing: 0.02 mm. Divider with 3-jaw chuck made of cast iron with
and marking. Direct division: via dividing plate with 24 positions sliding blocks
for dividing 2-3-4-6-8-12-24
Execution: Graduation via scale and adjustable vernier scale, Notes:
Body made from cast iron, dividing disc made scale interval: 1° Delivered ex-works, postage and packaging
of steel, hardened and polished, concentricity excluded. Clamping Technology
Point height (mm) 100 125 160 200
Dividing device height C (mm) 167.5 210 265 330
Locking arm height B (mm) 254 301 382 469
Lathe chuck Ø D (mm) 125 160 200 250
Through-bore d (mm) 26.5 42 55 76
Basic body width F (mm) 130 140 160 180
Width H (mm) 186 205 228 256
Length L (mm) 215 245 300 340
For groove width E (mm) 14 14 18 18
Morse taper size - MK 3 MK 4 MK 4
Weight (kg) 17.6 32.2 55.3 86.5
125
200
160
Ident. No.
100
25124... Unit price, € O. R. O. R. + (O. R.) + (O. R.) +
Prod. group 270
