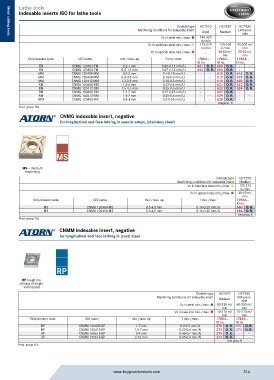

Page 314 - Buy Premium Tools ATORN Catalogue

Lathe tools
Indexable inserts ISO for lathe tools

Carbide type HC7510 HC7520 HC7530
Machining conditions for indexable insert Good Medium Unfavour-
able
Metal cutting tools
Metal cutting tools
Vc in steel min./max. ˜ 140-320 - -
m/min
Vc in stainless steel min./max. ˜ 175-270 120-260 90-200 m/
m/min m/min min
Vc in special alloy min./max. ˜ - 30-60 m/ 20-50 m/
min
min
Chip breaker code ISO name min./max. ap f min./max. 17863... 17863... 17863...
ID no. ID no. ID no.
FM CNMG 120404-FM 0.2-1 mm 0.05-0.12 mm/U 601 O. R. 603 O. R. - -
FM CNMG 120408-FM 0.4-1.5 mm 0.07-0.16 mm/U 602 O. R. 604 O. R. - -
MM CNMG 120404-MM 0.5-2 mm 0.1-0.18 mm/U - - 615 O. R. 616 O. R.
MM CNMG 120408-MM 0.8-3.5 mm 0.18-0.3 mm/U - - 617 O. R. 618 O. R.
MM CNMG 120412-MM 1.2-3.5 mm 0.18-0.3 mm/U - - 619 O. R. 620 O. R.
RM CNMG 120408-RM 1.2-4 mm 0.22-0.4 mm/U - - 621 O. R. 622 O. R.
RM CNMG 120412-RM 1.5-4.5 mm 0.25-0.5 mm/U - - 623 O. R. 624 O. R.
RM CNMG 160608-RM 1.2-7 mm 0.22-0.45 mm/U - - 627 O. R. - -
RM CNMG 160612-RM 1.5-7 mm 0.25-0.6 mm/U - - 629 O. R. - -
WPX CNMG 120408-WP 0.8-3 mm 0.2-0.55 mm/U - - 625 O. R. - -
Unit price, €
Prod. group 156
CNMG indexable insert, negative
for longitudinal and face lathing in special alloys, (stainless steel)

MS

MS – medium
machining
Carbide type HC7220
Machining conditions for indexable insert Medium
Vc in stainless steel min./max. ˜ 120-210
m/min
Vc in special alloy min./max. ˜ 30-60 m/
min
Chip breaker code ISO name min./max. ap f min./max. 17863...
ID no.
MS CNMG 120404-MS 0.5-4.0 mm 0.16-0.25 mm/U 680 O. R.
MS CNMG 120408-MS 0.6-4.0 mm 0.16-0.30 mm/U 684 O. R.
Unit price, €
Prod. group 156
CNMM indexable insert, negative
for longitudinal and face lathing in (cast) steel

RP
RP rough ma-
chining of single-
sided panel
Carbide type HC7620 HC7630
Machining conditions for indexable insert Medium Unfavour-
able
Vc in steel min./max. ˜ 80-230 m/ 60-200 m/
min min
Vc in cast iron min./max. ˜ 10-210 m/ 10-210 m/
min min
Chip breaker code ISO name min./max. ap f min./max. 17863... 17863...
ID no. ID no.
RP CNMM 120408-RP 1-7 mm 0.2-0.5 mm/U 270 O. R. 271 O. R.
RP CNMM 120412-RP 1.5-7 mm 0.25-0.6 mm/U 273 O. R. 274 O. R.
RP CNMM 160612-RP 2-9 mm 0.45-0.7 mm/U 275 O. R. - -
RP CNMM 190616-RP 2-10 mm 0.45-0.9 mm/U 276 O. R. - -
Unit price, €
Prod. group 156

www.buypremiumtools.com 314
