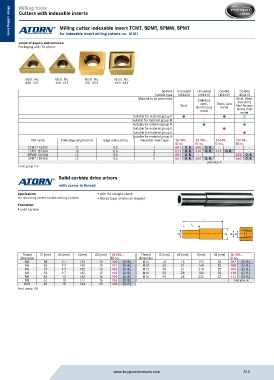

Page 310 - Buy Premium Tools ATORN Catalogue

Milling tools
Cutters with indexable inserts

Milling cutter indexable insert TCMT, SDMT, SPMW, SPMT
for indexable insert milling cutters no. 16107
Metal cutting tools
Metal cutting tools
scope of supply and services:
Packaging unit: 10 pieces

Ident. No. Ident. No. Ident. No. Ident. No.
600–601 610–613 651–653 660–663
Surface Uncoated Uncoated Coated Coated
Carbide type HW4620 HW4410 HC4625 HC4410
Material to be processed Stainless Steel, Stain-
less steel,
steel,
Steel Non-ferrous Steel, Cast Non-ferrous
metal
metal metal, Cast
metal
Suitable for material group P ˜ ˜ š
Suitable for material group M š š
Suitable for material group N ˜ ˜
Suitable for material group K ˜
Suitable for material group S ˜
Suitable for material group H
ISO name Knife edge length (mm) Edge radius (mm) Indexable insert type 16109... 16109... 16109... 16109...
ID no. ID no. ID no. ID no.
TCMT 110202 11 0.2 1 601 O. R. 600 O. R. - - - -
TCMT 16T304 16 0.4 2 611 O. R. 610 O. R. 613 O. R. - -
SPMW 120408 12 0.8 5 651 O. R. - - - - 653 O. R.
SPMT 120408 12 0.8 6 661 O. R. 660 O. R. - - 663 O. R.
Unit price, €
Prod. group 156
Solid carbide drive arbors
with screw-in thread
Application: ƒ with HA straight shank
for mounting screw-on die-sinking cutters ƒ Morse taper shanks on request
Execution:
ƒ solid carbide

Thread l2 (mm) d5 (mm) l (mm) d3 (mm) 16150... Thread l2 (mm) d5 (mm) l (mm) d3 (mm) 16150...
dimension ID no. dimension ID no.
M6 38 9.7 110 10 100 (O. R.) M10 78 18 194 20 107 (O. R.)
M6 53 9.7 140 10 101 (O. R.) M12 60 21 160 25 108 (O. R.)
M6 37 9.7 122 12 102 (O. R.) M12 90 21 210 25 109 (O. R.)
M6 52 9.7 142 12 103 (O. R.) M16 59 28 182 32 110 (O. R.)
M8 42 13 142 16 104 (O. R.) M16 99 28 232 32 111 (O. R.)
M8 57 13 177 16 105 (O. R.) Unit price, €
M10 45 18 144 20 106 (O. R.)
Prod. group 155

www.buypremiumtools.com 310
