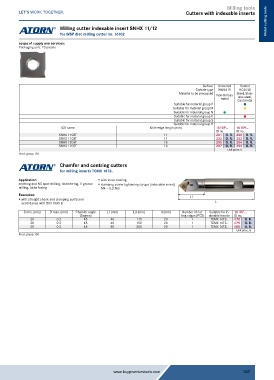

P. 307
Milling tools
Cutters with indexable inserts
Milling cutter indexable insert SNHX 11/12 Metal cutting tools
for WSP disc milling cutter no. 16102
scope of supply and services:
Packaging unit: 10 pieces
Surface Uncoated Coated
Carbide type HW4415 HC4630
Material to be processed Non-ferrous Steel, Stain-
less steel,
metal Cast metal
Suitable for material group P
Suitable for material group M
Suitable for material group N
Suitable for material group K
Suitable for material group S
Suitable for material group H
ISO name Knife edge length (mm) 16109... 16109...
ID no. ID no.
SNHX 1102T 11 201 O. R. 200 O. R.
SNHX 1103T 11 203 O. R. 202 O. R.
SNHX 1203T 13 205 O. R. 204 O. R.
SNHX 1205T 13 207 O. R. 206 O. R.
Unit price, €
Prod. group 156
Chamfer and centring cutters
for milling inserts TCMX 16T3..
Application: with inner cooling
centring and NC spot drilling, chamfering, V-groove clamping screw tightening torque (indexable insert)
milling, lathe facing M4 = 5.2 Nm
Execution: L1
with straight shank and clamping surface in
accordance with DIN 1835 B L
D min. (mm) D max. (mm) Chamfer angle L1 (mm) L3 (mm) d (mm) Number of cut- Suitable for in- 16107...
(Degree) ting edges (PCS) dexable inserts ID no.
20 0.2 45 40 115 20 1 TCMX 16T3.. 470 O. R.
20 0.2 45 60 150 20 1 TCMX 16T3.. 475 O. R.
20 0.2 45 80 200 20 1 TCMX 16T3.. 480 O. R.
Unit price, €
Prod. group 108
