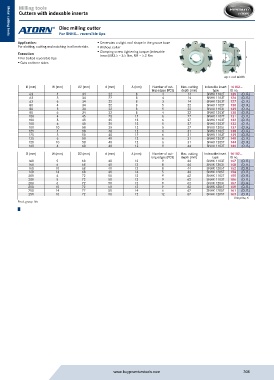

P. 306
Milling tools
Cutters with indexable inserts
Disc milling cutter
For SNHX... reversible tips
Metal cutting tools
Metal cutting tools
Application: Generates a slight roof shape in the groove base
For slotting, cutting and notching in all materials. Without collar
Execution: Clamping screw tightening torque (indexable
insert) M3.5 = 3.5 Nm, M4 = 5.2 Nm
For bolted reversible tips a d b D
Cuts on three sides
a p
ap = cut width
D (mm) W (mm) D2 (mm) d (mm) A (mm) Number of cut- Max. cutting Indexable insert 16102...
ting edges (PCS) depth (mm) type ID no.
63 4 34 22 8 4 14 SNHX 1102T 125 (O. R.)
63 5 34 22 8 4 14 SNHX 1103T 126 (O. R.)
63 6 34 22 8 3 14 SNHX 1203T 127 (O. R.)
80 4 34 22 8 5 22 SNHX 1102T 128 (O. R.)
80 5 34 22 8 5 22 SNHX 1103T 129 (O. R.)
80 6 34 22 8 4 22 SNHX 1203T 130 (O. R.)
100 4 45 25 12 6 27 SNHX 1102T 131 (O. R.)
100 5 45 25 12 6 27 SNHX 1103T 132 (O. R.)
100 6 45 25 12 5 27 SNHX 1203T 133 (O. R.)
100 10 58 25 12 5 27 SNHX 1205T 137 (O. R.)
125 4 58 40 12 6 31 SNHX 1102T 138 (O. R.)
125 5 58 40 12 6 31 SNHX 1103T 139 (O. R.)
125 6 58 40 12 6 31 SNHX 1203T 140 (O. R.)
125 10 58 40 12 6 31 SNHX 1205T 144 (O. R.)
160 4 68 40 12 9 44 SNHX 1102T 146 (O. R.)
D (mm) W (mm) D2 (mm) d (mm) A (mm) Number of cut- Max. cutting Indexable insert 16102...
ting edges (PCS) depth (mm) type ID no.
160 5 68 40 12 9 44 SNHX 1103T 147 (O. R.)
160 6 68 40 12 8 44 SNHX 1203T 148 (O. R.)
160 10 68 40 12 8 44 SNHX 1205T 152 (O. R.)
160 14 68 40 14 5 44 SNHX 1205T 154 (O. R.)
200 4 72 50 12 9 62 SNHX 1102T 155 (O. R.)
200 5 72 50 12 9 62 SNHX 1103T 156 (O. R.)
200 6 72 50 12 9 62 SNHX 1203T 157 (O. R.)
200 10 72 50 12 9 62 SNHX 1205T 159 (O. R.)
200 14 72 50 14 6 62 SNHX 1205T 161 (O. R.)
250 10 72 50 12 12 87 SNHX 1205T 163 (O. R.)
Unit price, €
Prod. group 155
