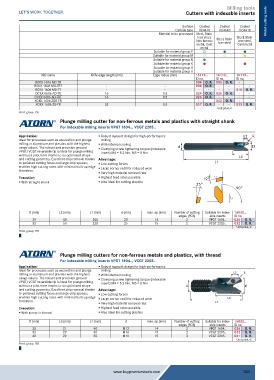

P. 301
Milling tools
Cutters with indexable inserts
Surface Coated Coated Coated Metal cutting tools
Carbide type HC4410 HC4640 HC4410
Material to be processed Steel, Stain-
less steel, Steel, Stain-
Non-ferrous Steel, Stain- less steel,
less steel
metal, Cast Cast metal
metal
Suitable for material group P
Suitable for material group M
Suitable for material group N
Suitable for material group K
Suitable for material group S
Suitable for material group H
ISO name Knife edge length (mm) Edge radius (mm) 16113... 16113... 16113...
ID no. ID no. ID no.
RCKX 1606 MO-TR - - 004 O. R. 006 O. R. - -
RCKX 1606 MO-TRT - - 008 O. R. - - - -
RCKX 1606 MO-TT - - - - - - 010 O. R.
OCKX 0606 AD-TR 16 0.5 024 O. R. 025 O. R. - -
OCKX 0606 AD-TRT 16 0.5 026 O. R. - - - -
XCKK 1606 ZDR-TR - - - - 032 O. R. - -
XOKX 1606 ZD-TR 32 0.5 037 O. R. - - 035 O. R.
Unit price, €
Prod. group 155
Plunge milling cutter for non-ferrous metals and plastics with straight shank
For indexable milling inserts VPGT 1604.., VCGT 2205..
Application: Robust support design for high-performance L2 R
Ideal for processes such as excavation and plunge milling
milling in aluminium and plastics with the highest With internal cooling
usage values. The robust and precision-ground Clamping screw tightening torque (indexable d D
VPGT/VCGT reversible tip is ideal for plunge milling insert) M4 = 5.2 Nm, M5 = 8 Nm
without a pilot bore thanks to its optimised shape L3
and cutting geometry. Excellent chip removal thanks Advantage:
to polished cutting faces and large chip spaces; Low cutting forces L1
enables high cutting rates with minimal built-up edge Large corner radii for reduced wear
formation.
Very high material removal rate
Execution: Highest feed rates possible 19°
With straight shank Also ideal for cutting plastics
25°
90°
l 2
D (mm) L2 (mm) L1 (mm) d (mm) max. ap (mm) Number of cutting Suitable for index- 16032...
edges (PCS) able inserts ID no.
25 40 200 20 14 2 VPGT 1604.. 025 O. R.
32 50 220 25 15 2 VCGT 2205.. 032 O. R.
Unit price, €
Prod. group 155
Plunge milling cutters for non-ferrous metals and plastics, with thread
For indexable milling inserts VPGT 1604.., VCGT 2205..
Application: Robust support design for high-performance
Ideal for processes such as excavation and plunge milling
milling in aluminium and plastics with the highest With internal cooling L2 R
usage values. The robust and precision-ground Clamping screw tightening torque (indexable
VPGT/VCGT reversible tip is ideal for plunge milling insert) M4 = 5.2 Nm, M5 = 8 Nm
without a pilot bore thanks to its optimised shape d D
and cutting geometry. Excellent chip removal thanks Advantage:
to polished cutting faces and large chip spaces; Low cutting forces
enables high cutting rates with minimal built-up edge Large corner radii for reduced wear L3
formation.
Very high material removal rate L1
Execution: Highest feed rates possible
With screw-in thread Also ideal for cutting plastics
D (mm) L3 (mm) L1 (mm) d max. ap (mm) Number of cutting Suitable for index- 16032...
edges (PCS) able inserts ID no.
25 21 40 M12 14 2 VPGT 1604.. 026 O. R.
32 29 50 M16 15 2 VCGT 2205.. 033 O. R.
42 29 50 M16 15 3 VCGT 2205.. 041 O. R.
Unit price, €
Prod. group 155
