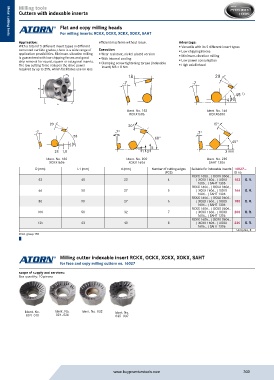

P. 300
Milling tools
Cutters with indexable inserts
Flat and copy milling heads
For milling inserts: RCKX, OCKX, XCKX, XOKX, SAHT
Metal cutting tools
Metal cutting tools
Application: efficient machines without issue. Advantage:
With a total of 5 different insert types in different Versatile with its 5 different insert types
cemented carbide grades, there is a wide range of Execution: Low chipping forces
application possibilities. Minimum-vibration milling Wear-resistant, nickel-plated version Minimum-vibration milling
is guaranteed with low chipping forces and good With internal cooling
chip removal for round, square or octagonal inserts. Clamping screw tightening torque (indexable Low power consumption
The low cutting force reduces the drive power insert) M5 = 8 Nm High axial infeed
required by up to 25%, which facilitates use on less
18
d4 20
-7 -7
d5 d2 d1
45 1)
4 10
h
Ident. No. 152 Ident. No. 166
RCKX1606 OCKX0606
20 20° 15°
-7 -7° -7°
58
60°
45°
5 9
5
28 1,8 1 3 3 mm
Ident. No. 180 Ident. No. 200 Ident. No. 225
XCKX1606 XOKX 1606 SAHT 1306
D (mm) L1 (mm) d (mm) Number of cutting edges Suitable for indexable inserts 16027...
(PCS) ID no.
RCKX 1606.. | OCKX 0606..
52 40 22 4 | XCKX 1606.. | XOKX 152 O. R.
1606.. | SAHT 1306
RCKX 1606.. | OCKX 0606..
66 50 27 5 | XCKX 1606.. | XOKX 166 O. R.
1606.. | SAHT 1306
RCKX 1606.. | OCKX 0606..
80 50 27 6 | XCKX 1606.. | XOKX 180 O. R.
1606.. | SAHT 1306
RCKX 1606.. | OCKX 0606..
100 50 32 7 | XCKX 1606.. | XOKX 200 O. R.
1606.. | SAHT 1306
RCKX 1606.. | OCKX 0606..
125 63 40 8 | XCKX 1606.. | XOKX 225 O. R.
1606.. | SAHT 1306
Unit price, €
Prod. group 155
Milling cutter indexable insert RCKX, OCKX, XCKX, XOKX, SAHT
for face and copy milling cutters no. 16027
scope of supply and services:
Box quantity: 10 pieces
Ident. No. Ident. No. Ident. No. 032 Ident. No.
004–010 024–026 035–037
