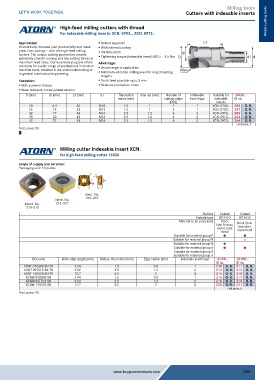

Milling tools
Cutters with indexable inserts

High-feed milling cutters with thread Metal cutting tools
For indexable milling inserts: XCN. 0703.., XCN. 09T3..
Application: ƒ Robust supports L3
Dramatically increase your productivity and make ƒ With internal cooling
great cost-savings – with the high-feed milling ƒ Variable pitch
cutters. The unique cutting geometries provide di
extremely smooth running and low cutting forces at ƒ Tightening torque (indexable insert) M3.5 = 3.5 Nm D d1 d
maximum feed rates. Our extensive program offers Advantage:
solutions for a wide range of applications in modern ƒ Broad range of application
machine tools, whether in die and mould making or Rtheo
in general mechanical engineering. ƒ Minimum-vibration milling even for long mounting
lengths
Execution: ƒ Tooth feed possible up to 3 mm
ƒ With screw-in thread ƒ Reduces production times
ƒ Wear-resistant, nickel-plated version
D (mm) di (mm) L3 (mm) d1 Theoretical max. ap (mm) Number of Indexable Suitable for 16026...
radius (mm) cutting edges insert type indexable ID no.
(PCS) inserts
20 6.9 30 M10 1.5 1 2 1 XCN. 0703.. 250 O. R.
25 12 33 M12 1.5 1 3 1 XCN. 0703.. 251 O. R.
32 17 43 M16 2.5 1.2 4 2 XCN. 09T3.. 252 O. R.
35 20 43 M16 2.5 1.2 4 2 XCN. 09T3.. 253 O. R.
42 27 43 M16 2.5 1.2 5 2 XCN. 09T3.. 254 O. R.
Unit price, €
Prod. group 155

Milling cutter indexable insert XCN.
for high-feed milling cutter 16026
scope of supply and services:
Packaging unit: 10 pieces
r
7°
1 d
R theo
l s
Ident. No.
Ident. No. 210–215
Ident. No. 216–221
210–215
Surface Coated Coated
Carbide type HC4410 HC4640
Material to be processed Steel, Steel, Stain-
Non-ferrous
less steel,
metal, Cast Cast metal
metal
Suitable for material group P ˜ ˜
Suitable for material group M ˜
Suitable for material group N ˜
Suitable for material group K ˜ ˜
Suitable for material group S
Suitable for material group H
ISO name Knife edge length (mm) Radius, theoretical (mm) Edge radius (mm) Indexable insert type 16109... 16109...
ID no. ID no.
XCNT 070308 SN-TR 7.94 1.5 0.8 1 210 O. R. 211 O. R.
XCNT 09T312 SN-TR 9.52 2.5 1.2 2 212 O. R. 213 O. R.
XCNT 120520 SN-TR 12.7 3.5 2 3 214 O. R. 215 O. R.
XCNW 070308 SN 7.94 1.5 0.8 1 216 O. R. 217 O. R.
XCNW 09T312 SN 9.52 2.5 1.2 2 218 O. R. 219 O. R.
XCNW 120520 SN 12.7 3.5 2 3 220 O. R. 221 O. R.
Unit price, €
Prod. group 155
