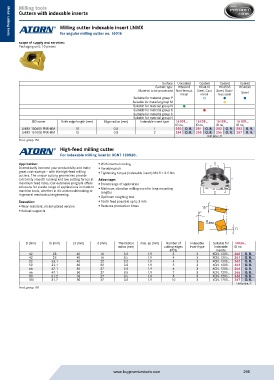

P. 298
Milling tools
Cutters with indexable inserts
Milling cutter indexable insert LNMX
for angular milling cutter no. 16016
Metal cutting tools
Metal cutting tools
scope of supply and services:
Packaging unit: 10 pieces
Surface Uncoated Coated Coated Coated
Carbide type HW4310 HC4410 HC4535 HC4630
Material to be processed Non-ferrous Steel, Cast Steel, Stain-
metal metal less steel Steel
Suitable for material group P
Suitable for material group M
Suitable for material group N
Suitable for material group K
Suitable for material group S
Suitable for material group H
ISO name Knife edge length (mm) Edge radius (mm) Indexable insert type 16109... 16109... 16109... 16109...
ID no. ID no. ID no. ID no.
LNMX 100605 PNR-MM 10 0.5 1 250 O. R. 251 O. R. 252 O. R. 253 O. R.
LNMX 151008 PNR-MM 15 0.8 2 254 O. R. 255 O. R. 256 O. R. 257 O. R.
Unit price, €
Prod. group 156
High-feed milling cutter
For indexable milling inserts: XCNT 120520..
Application: With internal cooling d5 d
Dramatically increase your productivity and make Variable pitch
great cost-savings – with the high-feed milling Tightening torque (indexable insert) M3.5 = 3.5 Nm
cutters. The unique cutting geometries provide
extremely smooth running and low cutting forces at Advantage: L1
maximum feed rates. Our extensive program offers Broad range of application
solutions for a wide range of applications in modern Minimum-vibration milling even for long mounting Rtheo
machine tools, whether in die and mould making or lengths di
in general mechanical engineering. D
Optimum roughing tool
Execution: Tooth feed possible up to 3 mm
Wear-resistant, nickel-plated version Reduces production times 15°
Robust supports
0°
R theo
l1
D (mm) di (mm) L3 (mm) d (mm) Theoretical max. ap (mm) Number of Indexable Suitable for 16026...
radius (mm) cutting edges insert type indexable ID no.
(PCS) inserts
42 23 40 16 3.5 1.9 3 3 XCN. 1205.. 260 O. R.
42 23 40 16 3.5 1.9 4 3 XCN. 1205.. 261 O. R.
52 33.1 40 22 3.5 1.9 4 3 XCN. 1205.. 262 O. R.
52 33.1 40 22 3.5 1.9 5 3 XCN. 1205.. 263 O. R.
66 47.1 50 27 3.5 1.9 6 3 XCN. 1205.. 264 O. R.
66 47.1 50 27 3.5 1.9 7 3 XCN. 1205.. 265 O. R.
80 61.2 50 27 3.5 1.9 8 3 XCN. 1205.. 266 O. R.
100 81.2 50 32 3.5 1.9 10 3 XCN. 1205.. 267 O. R.
Unit price, €
Prod. group 155
