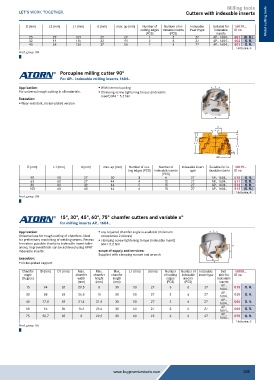

Milling tools
Cutters with indexable inserts

D (mm) L2 (mm) L1 (mm) d (mm) max. ap (mm) Number of Number of in- Indexable Suitable for 16019... Metal cutting tools
cutting edges dexable inserts insert type indexable ID no.
(PCS) (PCS) inserts
25 29 105 25 29 1 2 27 AP.. 1604.. 501 (O. R.)
32 44 115 32 44 2 6 27 AP.. 1604.. 502 O. R.
40 58 130 32 58 2 8 27 AP.. 1604.. 503 O. R.
Unit price, €
Prod. group 108

Porcupine milling cutter 90°
For AP... indexable milling inserts 1604..
Application: ƒ With internal cooling d
For universal rough cutting in all materials. ƒ Clamping screw tightening torque (indexable
insert) M4 = 5.2 Nm
Execution:
ƒ Wear-resistant, nickel-plated version L1

D

d
a
b
e
L1
L2
90°
D
D (mm) L1 (mm) d (mm) max. ap (mm) Number of cut- Number of Indexable insert Suitable for in- 16019...
ting edges (PCS) indexable inserts type dexable inserts ID no.
(PCS)
50 50 27 30 3 6 27 AP.. 1604.. 510 O. R.
63 60 27 44 4 12 27 AP.. 1604.. 511 O. R.
80 60 32 44 5 15 27 AP.. 1604.. 512 O. R.
100 60 40 44 6 18 27 AP.. 1604.. 513 (O. R.)
Unit price, €
Prod. group 108

15°, 30°, 45°, 60°, 75° chamfer cutters and variable x°
for milling inserts AP.. 1604..

Application: ƒ any required chamfer angle is available (minimum d
Universal use for rough cutting of chamfers. Ideal acceptance 2 pieces)
for preliminary machining of welding seams. Recess ƒ clamping screw tightening torque (indexable insert)
formation possible thanks to indexable insert toler- M4 = 5.2 Nm
ances; improved finish can be achieved using APHT L1
indexable inserts. scope of supply and services: L2
Supplied with clamping screws and wrench
Execution: D1
ƒ nickel-plated support D
Chamfer D (mm) D1 (mm) Max. Max. Max. L1 (mm) d (mm) Number Number of Indexable Suit- 16055...
angle chamfer chamfer chamfer of cutting indexable insert type able for ID no.
(Degree) width height length edges inserts indexable
(mm) (mm) (mm) (PCS) (PCS) inserts
AP..
15 94 35 29.5 8 30 50 27 3 6 27 1604.. 015 O. R.
AP..
30 88 35 26.5 15 30 50 27 3 6 27 1604.. 030 O. R.
AP..
45 77.8 35 21.4 21.5 30 50 27 3 6 27 1604.. 045 O. R.
AP..
60 65 35 15.1 26.5 30 50 27 3 6 27 1604.. 060 O. R.
AP..
75 50.7 35 8 29.5 30 60 22 3 6 27 1604.. 075 O. R.
Unit price, €
Prod. group 155
