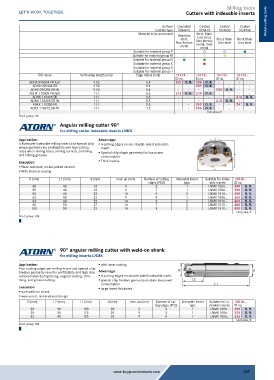

P. 297
Milling tools
Cutters with indexable inserts
Surface Uncoated Coated Coated Coated Metal cutting tools
Carbide type HW4410 HC4410 HC4630 HC4540
Material to be processed Stainless Steel, Stain-
steel, less steel, Steel, Stain- Steel, Stain-
Non-ferrous Non-ferrous less steel less steel
metal, Cast
metal metal
Suitable for material group P
Suitable for material group M
Suitable for material group N
Suitable for material group K
Suitable for material group S
Suitable for material group H
ISO name Knife edge length (mm) Edge radius (mm) 16113... 16113... 16113... 16113...
ID no. ID no. ID no. ID no.
ADHX 090304 FR-ALC 9.52 0.4 203 O. R. 204 O. R. - - - -
ADHX 090304 ER 9.52 0.4 - - 207 O. R. - - - -
ADHX 090304 ER-IN 9.52 0.4 - - - - 208 O. R. - -
ADHX 110305 FR-ALC 11.1 0.5 213 O. R. 214 O. R. - - - -
ADHX 110305 ER 11.1 0.5 - - - - - - 216 O. R.
ADHX 110305 ER-IN 11.1 0.5 - - - - 218 O. R. - -
ADKX 110305 ER 11.1 0.5 - - 242 O. R. - - 241 O. R.
ADKX 110312 SR-TR 11.1 1.2 - - 246 O. R. - - - -
Unit price, €
Prod. group 155
Angular milling cutter 90°
for milling cutter indexable inserts LNMX
Application: Advantage: d
4 flutes per indexable milling insert and special chip 4 cutting edges on one double-sided indexable
shape geometry for profitability and high cutting insert
rates when milling faces, milling corners, trimming Special chip shape geometry for low power
and milling grooves. consumption L1
Execution: Thick inserts
Wear-resistant, nickel-plated version
With internal cooling D
D (mm) L1 (mm) d (mm) max. ap (mm) Number of cutting Indexable insert Suitable for index- 16016...
edges (PCS) type able inserts ID no.
40 40 16 9 5 1 LNMX 1006.. 340 O. R.
50 40 22 9 7 1 LNMX 1006.. 350 O. R.
50 40 22 14 5 2 LNMX 1510.. 450 O. R.
63 40 22 9 9 1 LNMX 1006.. 363 O. R.
63 40 22 14 6 2 LNMX 1510.. 463 O. R.
80 50 27 14 7 2 LNMX 1510.. 480 O. R.
100 50 32 14 8 2 LNMX 1510.. 500 O. R.
Unit price, €
Prod. group 108
90° angular milling cutter with weld-on shank
for milling inserts LNMX
Application: with inner cooling
Four cutting edges per milling insert and special chip
breaker geometry result in profitability and high chip Advantage: D d
removal rates during facing, angular cutting, trim- 4 cutting edges on double-sided indexable insert
ming, and groove cutting. special chip breaker geometry enables low power L2
consumption L1
Execution: large insert thickness
with weld-on shank
wear-proof, nickel-plated design
D (mm) L2 (mm) L1 (mm) d (mm) max. ap (mm) Number of cut- Indexable insert Suitable for in- 16016...
ting edges (PCS) type dexable inserts ID no.
20 30 100 20 9 3 1 LNMX 1006.. 320 O. R.
25 35 115 25 9 3 1 LNMX 1006.. 325 O. R.
32 40 125 25 9 4 1 LNMX 1006.. 332 O. R.
Unit price, €
Prod. group 108
