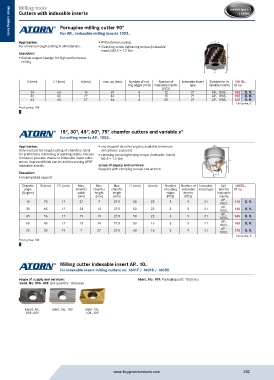

Page 292 - Buy Premium Tools ATORN Catalogue

Milling tools
Cutters with indexable inserts

Porcupine milling cutter 90°
For AP... indexable milling inserts 1003..
Metal cutting tools
Application: ƒ With internal cooling d
For universal rough cutting in all materials. ƒ Clamping screw tightening torque (indexable
insert) M2.5 = 1.2 Nm
Execution:
ƒ Robust support design for high-performance L1
milling

D
D (mm) L1 (mm) d (mm) max. ap (mm) Number of cut- Number of Indexable insert Suitable for in- 16018...
ting edges (PCS) indexable inserts type dexable inserts ID no.
(PCS)
40 50 16 37 3 12 21 AP.. 1003.. 142 O. R.
50 60 22 46 3 15 21 AP.. 1003.. 152 O. R.
63 60 27 46 4 20 21 AP.. 1003.. 162 O. R.
Unit price, €
Prod. group 108

15°, 30°, 45°, 60°, 75° chamfer cutters and variable x°
for milling inserts AP.. 1003..

Application: ƒ any required chamfer angle is available (minimum d
Universal use for rough cutting of chamfers. Ideal acceptance 2 pieces)
for preliminary machining of welding seams. Recess ƒ clamping screw tightening torque (indexable insert)
formation possible thanks to indexable insert toler- M2.5 = 1.2 Nm
ances; improved finish can be achieved using APHT L1
indexable inserts. scope of supply and services: L2
Supplied with clamping screws and wrench
Execution: D1
ƒ nickel-plated support D
Chamfer D (mm) D1 (mm) Max. Max. Max. L1 (mm) d (mm) Number Number of Indexable Suit- 16055...
angle chamfer chamfer chamfer of cutting indexable insert type able for ID no.
(Degree) width height length edges inserts indexable
(mm) (mm) (mm) (PCS) (PCS) inserts
AP..
15 70 17 27 7 27.5 50 22 3 9 21 1003.. 115 O. R.
AP..
30 65 17 24 13 27.5 50 22 3 9 21 1003.. 130 O. R.
AP..
45 56 17 19 19 27.5 50 22 3 9 21 1003.. 145 O. R.
AP..
60 45 17 13 24 27.5 50 16 3 9 21 1003.. 160 O. R.
AP..
75 33 19 7 27 27.5 60 16 3 9 21 1003.. 175 O. R.
Unit price, €
Prod. group 108

Milling cutter indexable insert AP.. 10..
for indexable insert milling cutters no. 16017 / 16018 / 16055
scope of supply and services: Ident. No. 109: Packaging unit: 10 pieces
Ident. No. 095–108: Box quantity: 10 pieces

Ident. No. Ident. No. 103 Ident. No.
095–099 108–109
