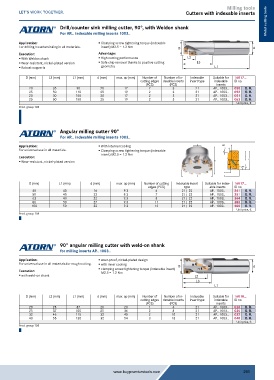

Page 291 - Buy Premium Tools ATORN Catalogue

Milling tools
Cutters with indexable inserts

Drill/counter sink milling cutter, 90°, with Weldon shank Metal cutting tools
For AP... indexable milling inserts 1003..
Application: ƒ Clamping screw tightening torque (indexable
For drilling/countersinking in all materials. insert) M2.5 = 1.2 Nm D d
Execution: Advantage:
ƒ With Weldon shank ƒ High cutting performance L2
ƒ Wear-resistant, nickel-plated version ƒ Safe chip removal thanks to positive cutting L3
ƒ Robust supports geometry L1

D (mm) L3 (mm) L1 (mm) d (mm) max. ap (mm) Number of Number of in- Indexable Suitable for 16017...
cutting edges dexable inserts insert type indexable ID no.
(PCS) (PCS) inserts
20 35 90 20 17 2 3 21 AP.. 1003.. 050 O. R.
25 50 110 25 19 2 3 21 AP.. 1003.. 052 O. R.
20 30 150 20 17 2 3 21 AP.. 1003.. 051 O. R.
25 50 150 25 19 2 3 21 AP.. 1003.. 053 O. R.
Unit price, €
Prod. group 108

Angular milling cutter 90°
For AP... indexable milling inserts 1003..
Application: ƒ With internal cooling d d
For universal use in all materials. ƒ Clamping screw tightening torque (indexable b a
Execution: insert) M2.5 = 1.2 Nm e
ƒ Wear-resistant, nickel-plated version L1 L1
90° L2
c
D D
D (mm) L1 (mm) d (mm) max. ap (mm) Number of cutting Indexable insert Suitable for index- 16017...
edges (PCS) type able inserts ID no.
40 40 16 9.3 6 21 | 22 AP.. 1003.. 341 O. R.
50 40 22 9.3 7 21 | 22 AP.. 1003.. 351 O. R.
63 40 22 9.3 8 21 | 22 AP.. 1003.. 364 O. R.
80 50 27 9.3 11 21 | 22 AP.. 1003.. 380 O. R.
100 50 32 9.3 12 21 | 22 AP.. 1003.. 400 O. R.
Unit price, €
Prod. group 108

90° angular milling cutter with weld-on shank
for milling inserts AP.. 1003..
Application: ƒ wear-proof, nickel-plated design
For universal use in all materials for rough cutting. ƒ with inner cooling D d
Execution: ƒ clamping screw tightening torque (indexable insert)
M2.5 = 1.2 Nm
ƒ with weld-on shank L2
L3
L1

D (mm) L2 (mm) L1 (mm) d (mm) max. ap (mm) Number of Number of in- Indexable Suitable for 16018...
cutting edges dexable inserts insert type indexable ID no.
(PCS) (PCS) inserts
20 28 87 20 28 1 4 21 AP.. 1003.. 020 O. R.
25 37 105 25 36 2 8 21 AP.. 1003.. 025 O. R.
32 46 115 32 45 2 10 21 AP.. 1003.. 032 O. R.
40 55 130 32 54 3 18 21 AP.. 1003.. 040 O. R.
Unit price, €
Prod. group 108
