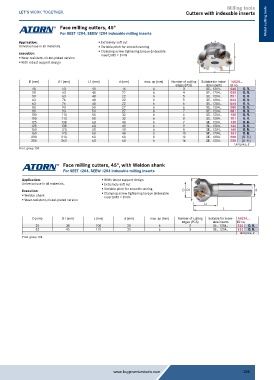

Page 286 - Buy Premium Tools ATORN Catalogue

Milling tools
Cutters with indexable inserts

Face milling cutters, 45° Metal cutting tools
For SEET 1204, SEEW 1204 indexable milling inserts
Application: ƒ Extremely soft cut d
Universal use in all materials. ƒ Variable pitch for smooth running
Execution: ƒ Clamping screw tightening torque (indexable
insert) M5 = 8 Nm
ƒ Wear-resistant, nickel-plated version L1
ƒ With robust support design
D

D (mm) D1 (mm) L1 (mm) d (mm) max. ap (mm) Number of cutting Suitable for index- 16024...
edges (PCS) able inserts ID no.
40 53 40 16 6 3 SE.. 1204.. 040 O. R.
50 63 48 22 6 4 SE.. 1204.. 050 O. R.
50 63 48 22 6 5 SE.. 1204.. 051 O. R.
63 76 48 22 6 5 SE.. 1204.. 063 O. R.
63 76 48 22 6 6 SE.. 1204.. 064 O. R.
80 93 50 27 6 6 SE.. 1204.. 080 O. R.
80 93 50 27 6 7 SE.. 1204.. 081 O. R.
100 113 50 32 6 6 SE.. 1204.. 100 O. R.
100 113 50 32 6 8 SE.. 1204.. 101 O. R.
125 138 63 40 6 7 SE.. 1204.. 125 O. R.
125 138 63 40 6 9 SE.. 1204.. 126 O. R.
160 173 63 40 6 8 SE.. 1204.. 160 O. R.
160 173 63 40 6 10 SE.. 1204.. 161 O. R.
200 213 63 60 6 12 SE.. 1204.. 200 (O. R.)
250 263 63 60 6 16 SE.. 1204.. 250 (O. R.)
Unit price, €
Prod. group 108

Face milling cutters, 45°, with Weldon shank
For SEET 1204, SEEW 1204 indexable milling inserts
Application: ƒ With robust support design
Universal use in all materials. ƒ Extremely soft cut
Execution: ƒ Variable pitch for smooth running D D1 d
ƒ Clamping screw tightening torque (indexable
ƒ Weldon shank insert) M5 = 8 Nm
ƒ Wear-resistant, nickel-plated version
L1
L
D (mm) D1 (mm) L (mm) d (mm) max. ap (mm) Number of cutting Suitable for index- 16024...
edges (PCS) able inserts ID no.
25 38 100 25 6 2 SE.. 1204.. 325 O. R.
32 45 110 25 6 3 SE.. 1204.. 332 O. R.
Unit price, €
Prod. group 108
