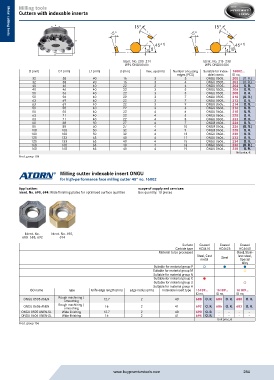

Page 284 - Buy Premium Tools ATORN Catalogue

Milling tools
Cutters with indexable inserts

15° 15°
d
-5° -5°
Metal cutting tools
L1
45° 1) 45° 1)
3 8 4 10
D
Ident. No. 200–214 Ident. No. 216–238
WPL ONGU0505 WPL ONGU0606
D (mm) D1 (mm) L1 (mm) d (mm) max. ap (mm) Number of cutting Suitable for index- 16002...
edges (PCS) able inserts ID no.
32 38 40 16 3 3 ONGU 0505.. 200 (O. R.)
32 38 40 16 3 4 ONGU 0505.. 202 (O. R.)
40 46 40 22 3 4 ONGU 0505.. 204 O. R.
40 46 40 22 3 5 ONGU 0505.. 206 O. R.
50 56 40 22 3 5 ONGU 0505.. 208 O. R.
50 56 40 22 3 7 ONGU 0505.. 210 (O. R.)
63 69 40 22 3 7 ONGU 0505.. 212 O. R.
63 69 40 22 3 9 ONGU 0505.. 214 O. R.
50 58 40 22 4 4 ONGU 0606.. 216 O. R.
50 58 40 22 4 6 ONGU 0606.. 218 O. R.
63 71 40 22 4 5 ONGU 0606.. 220 O. R.
63 71 40 22 4 8 ONGU 0606.. 222 O. R.
80 88 50 27 4 7 ONGU 0606.. 224 O. R.
80 88 50 27 4 10 ONGU 0606.. 226 (O. R.)
100 108 50 32 4 9 ONGU 0606.. 228 O. R.
100 108 50 32 4 12 ONGU 0606.. 230 O. R.
125 133 63 40 4 11 ONGU 0606.. 232 O. R.
125 133 63 40 4 15 ONGU 0606.. 234 O. R.
160 168 63 40 4 13 ONGU 0606.. 236 (O. R.)
160 168 63 40 4 19 ONGU 0606.. 238 O. R.
Unit price, €
Prod. group 108

Milling cutter indexable insert ONGU
for high-performance face milling cutter 45° no. 16002
Application: scope of supply and services:
Ident. No. 690, 694: Wide finishing plates for optimised surface qualities Box quantity: 10 pieces

Ident. No. Ident. No. 690,
680–688, 692 694
Surface Coated Coated Coated
Carbide type HC4410 HC4625 HC4640
Material to be processed Steel, Stain-
Steel, Cast less steel,
metal Steel Special
alloy
Suitable for material group P š ˜ ˜
Suitable for material group M š
Suitable for material group N
Suitable for material group K ˜
Suitable for material group S š
Suitable for material group H
ISO name Type Knife edge length (mm) Edge radius (mm) Indexable insert type 16109... 16109... 16109...
ID no. ID no. ID no.
ONGU 0505 ANEN Rough machining | 12.7 2 40 688 O. R. 684 O. R. 680 O. R.
smoothing
ONGU 0606 ANEN Rough machining | 16 2 41 692 O. R. 686 O. R. 682 O. R.
smoothing
ONGU 0505 ANEN-SL Wide finishing 12.7 2 40 690 O. R. - - - -
ONGU 0606 ANEN-SL Wide finishing 16 2 41 694 O. R. - - - -
Unit price, €
Prod. group 156
