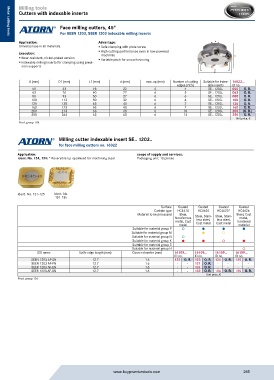

Page 285 - Buy Premium Tools ATORN Catalogue

Milling tools
Cutters with indexable inserts

Face milling cutters, 45°
For SEEN 1203, SEER 1203 indexable milling inserts
Metal cutting tools
Metal cutting tools
Application: Advantage: d
Universal use in all materials. ƒ Safe clamping with plate screw
Execution: ƒ High cutting performance even in low-powered
machines
ƒ Wear-resistant, nickel-plated version ƒ Variable pitch for smooth running L1
ƒ Indexable milling inserts for clamping using preci-
sion supports
D
D1
D (mm) D1 (mm) L1 (mm) d (mm) max. ap (mm) Number of cutting Suitable for index- 16022...
edges (PCS) able inserts ID no.
50 63 48 22 6 4 SE.. 1203.. 050 O. R.
63 76 40 22 6 5 SE.. 1203.. 063 O. R.
80 93 50 27 6 6 SE.. 1203.. 080 O. R.
100 113 50 32 6 6 SE.. 1203.. 100 O. R.
125 138 63 40 6 7 SE.. 1203.. 125 O. R.
160 173 63 40 6 7 SE.. 1203.. 160 O. R.
200 213 63 60 6 10 SE.. 1203.. 200 (O. R.)
250 263 63 60 6 13 SE.. 1203.. 250 O. R.
Unit price, €
Prod. group 108

Milling cutter indexable insert SE.. 1203..
for face milling cutters no. 16022

Application: scope of supply and services:
Ident. No. 124, 134: * Reversible tip optimised for machining steel Packaging unit: 10 pieces

Ident. No. 121–125 Ident. No.
131–135
Surface Coated Coated Coated Coated
Carbide type HC4410 HC4620 HC4620* HC4626
Material to be processed Steel, Steel, Stain- Steel, Stain- Steel, Cast
Non-ferrous less steel, less steel, metal,
metal, Cast Hardened
metal Cast metal Cast metal material
Suitable for material group P š ˜ ˜ ˜
Suitable for material group M ˜ š
Suitable for material group N š
Suitable for material group K ˜ ˜ š ˜
Suitable for material group S
Suitable for material group H š
ISO name Knife edge length (mm) Corner chamfer (mm) 16109... 16109... 16109... 16109...
ID no. ID no. ID no. ID no.
SEEN 1203 AF-SN 12.7 1.6 122 O. R. 123 O. R. 124 O. R. 125 O. R.
SEEN 1203 AF-FN 12.7 1.6 - - 121 O. R. - - - -
SEER 1203 AF-EN 12.7 1.6 - - 131 O. R. - - - -
SEER 1203 AF-SN 12.7 1.6 - - 133 O. R. 134 O. R. 135 O. R.
Unit price, €
Prod. group 156
