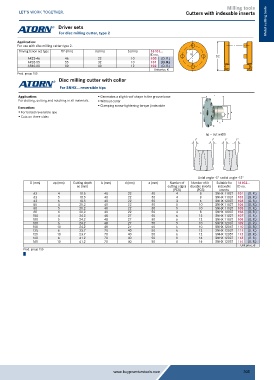

P. 305
Milling tools
Cutters with indexable inserts
Driver sets Metal cutting tools
For disc milling cutter, type 2
Application:
For use with disc milling cutter type 2.
Driving tenon set type D2 (mm) d (mm) b (mm) 16101...
ID no. d
AR22-46 46 22 10 100 (O. R.) D2
AR32-55 55 32 10 101 (O. R.)
AR40-80 80 40 12 102 (O. R.)
Unit price, €
Prod. group 155
Disc milling cutter with collar
For SNHX... reversible tips
Application: Generates a slight roof shape in the groove base a
For slotting, cutting and notching in all materials. Without collar
Execution: Clamping screw tightening torque (indexable
For bolted reversible tips D d b
Cuts on three sides c
e
a p
ap = cut width
1° 1° 1° 1°
Axial angle -3° radial angle -12°
D (mm) ap (mm) Cutting depth b (mm) d (mm) a (mm) Number of Number of in- Suitable for 16102...
ae (mm) cutting edges dexable inserts indexable ID no.
(PCS) (PCS) inserts
63 4 10.5 40 22 50 4 8 SNHX 1102T 101 (O. R.)
63 5 10.5 40 22 50 4 8 SNHX 1103T 102 (O. R.)
63 6 10.5 40 22 50 3 6 SNHX 1203T 103 (O. R.)
80 4 20.2 40 22 50 5 10 SNHX 1102T 104 (O. R.)
80 5 20.2 40 22 50 5 10 SNHX 1103T 105 (O. R.)
80 6 20.2 40 22 50 4 8 SNHX 1203T 106 (O. R.)
100 4 24.2 48 27 50 6 12 SNHX 1102T 107 (O. R.)
100 5 24.2 48 27 50 6 12 SNHX 1103T 108 (O. R.)
100 6 24.2 48 27 50 5 10 SNHX 1203T 109 (O. R.)
100 10 24.2 48 27 50 5 10 SNHX 1205T 110 (O. R.)
125 6 23.7 70 40 50 6 12 SNHX 1203T 111 (O. R.)
125 10 23.7 70 40 50 6 12 SNHX 1205T 112 (O. R.)
160 6 41.2 70 40 50 8 16 SNHX 1203T 113 (O. R.)
160 10 41.2 70 40 50 8 16 SNHX 1205T 114 (O. R.)
Unit price, €
Prod. group 155
www.buypremiumtools.com 305
