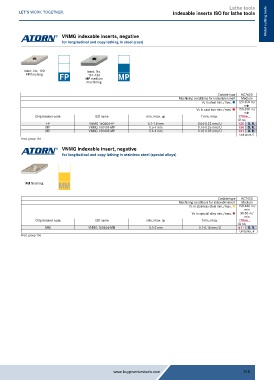

Page 318 - Buy Premium Tools ATORN Catalogue

Lathe tools
Metal cutting tools
Indexable inserts ISO for lathe tools

VNMG indexable inserts, negative
for longitudinal and copy lathing in steel (cast)

Ident. No. 120 Ident. No.
FP finishing 131–136
FP MP medium MP
machining

Carbide type HC7620
Machining conditions for indexable insert Medium
Vc in steel min./max. ˜ 120-350 m/
min
Vc in cast iron min./max. ˜ 150-290 m/
min
Chip breaker code ISO name min./max. ap f min./max. 17866...
ID no.
FP VNMG 160404-FP 0.1-1.5 mm 0.04-0.22 mm/U 120 O. R.
MP VNMG 160404-MP 0.5-4 mm 0.16-0.25 mm/U 136 O. R.
MP VNMG 160408-MP 0.6-4 mm 0.18-0.35 mm/U 131 O. R.
Unit price, €
Prod. group 156
VNMG indexable insert, negative
for longitudinal and copy lathing in stainless steel (special alloys)

FM finishing
MM

Carbide type HC7520
Machining conditions for indexable insert Medium
Vc in stainless steel min./max. ˜ 150-240 m/
min
Vc in special alloy min./max. ˜ 30-60 m/
min
Chip breaker code ISO name min./max. ap f min./max. 17866...
ID no.
MM VNMG 160404-MM 0.5-2 mm 0.1-0.18 mm/U 611 O. R.
Unit price, €
Prod. group 156
