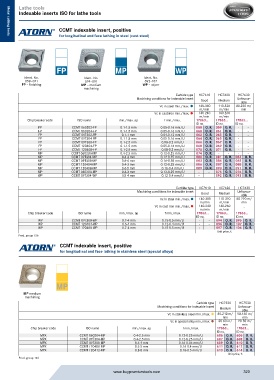

Lathe tools
Indexable inserts ISO for lathe tools

CCMT indexable insert, positive
for longitudinal and face lathing in steel (cast steel)
Metal cutting tools
Metal cutting tools

FP MP WP

Ident. No. Ident. No. Ident. No.
058–071 074–091 092–107
FP – finishing MP – medium WP – wiper
machining
Carbide type HC7610 HC7620 HC7630
Machining conditions for indexable insert Good Medium Unfavour-
able
Vc in steel min./max. ˜ 140-380 110-320 80-220 m/
m/min m/min min
Vc in cast iron min./max. ˜ 140-240 140-260 -
m/min m/min
Chip breaker code ISO name min./max. ap f min./max. 17863... 17863... 17863...
ID no. ID no. ID no.
FP CCMT 060202-FP 0.1-1.5 mm 0.05-0.16 mm/U 058 O. R. 059 O. R. - -
FP CCMT 060204-FP 0.1-1.5 mm 0.05-0.16 mm/U 060 O. R. 061 O. R. - -
FP CCMT 09T302-FP 0.1-1 mm 0.04-0.12 mm/U 062 O. R. 063 O. R. - -
FP CCMT 09T304-FP 0.1-1.5 mm 0.05-0.16 mm/U 064 O. R. 065 O. R. - -
FP CCMT 09T308-FP 0.1-2.5 mm 0.08-0.2 mm/U 066 O. R. 067 O. R. - -
FP CCMT 120404-FP 0.1-1.5 mm 0.05-0.16 mm/U 068 O. R. 069 O. R. - -
FP CCMT 120408-FP 0.1-2.5 mm 0.08-0.2 mm/U 070 O. R. 071 O. R. - -
MP CCMT 060204-MP 0.4-2.5 mm 0.12-0.25 mm/U 074 O. R. - - - -
MP CCMT 09T304-MP 0.4-3 mm 0.12-0.25 mm/U 080 O. R. 081 O. R. 082 O. R.
MP CCMT 09T308-MP 0.6-4 mm 0.16-0.35 mm/U 083 O. R. 084 O. R. 085 O. R.
MP CCMT 120404-MP 0.4-3 mm 0.12-0.25 mm/U 086 O. R. 087 O. R. 088 O. R.
MP CCMT 120408-MP 0.6-5 mm 0.16-0.4 mm/U 089 O. R. 090 O. R. 091 O. R.
MP CCMT 060204-MP 0.4-3 mm 0.12-0.25 mm/U - - 075 O. R. 076 O. R.
WP CCMT 09T304-WP 0.5-4 mm 0.12-0.4 mm/U - - 092 O. R. 093 O. R.
Carbide type HC7610 HC7620 HC7630
Machining conditions for indexable insert Good Medium Unfavour-
able
Vc in steel min./max. ˜ 140-380 110-320 80-220 m/
m/min m/min min
Vc in cast iron min./max. ˜ 140-240 140-260 -
m/min m/min
Chip breaker code ISO name min./max. ap f min./max. 17863... 17863... 17863...
ID no. ID no. ID no.
WP CCMT 09T308-WP 0.7-4 mm 0.15-0.5 mm/U - - 094 O. R. 095 O. R.
WP CCMT 120404-WP 0.5-4 mm 0.12-0.4 mm/U - - 096 O. R. 107 O. R.
WP CCMT 120408-WP 0.7-4 mm 0.15-0.5 mm/U - - 097 O. R. 106 O. R.
Unit price, €
Prod. group 156
CCMT indexable insert, positive
for longitudinal and face lathing in stainless steel (special alloys)

MP
MP medium
machining
Carbide type HC7520 HC7530
Machining conditions for indexable insert Medium Unfavour-
able
Vc in stainless steel min./max. ˜ 80-210 m/ 90-160 m/
min min
Vc in special alloy min./max. ˜ 30-60 m/ 20-50 m/
min min
Chip breaker code ISO name min./max. ap f min./max. 17863... 17863...
ID no. ID no.
MPX CCMT 060204-MP 0.4-2.5 mm 0.12-0.25 mm/U 605 O. R. 606 O. R.
MPX CCMT 09T304-MP 0.4-2.5 mm 0.12-0.25 mm/U 607 O. R. 608 O. R.
MPX CCMT 09T308-MP 0.6-4 mm 0.16-0.35 mm/U 609 O. R. 610 O. R.
MPX CCMT 120408-MP 0.6-5 mm 0.16-0.4 mm/U 611 O. R. 612 O. R.
MPX CCMT 120412-MP 0.8-5 mm 0.18-0.5 mm/U 613 O. R. 614 O. R.
Unit price, €
Prod. group 156
