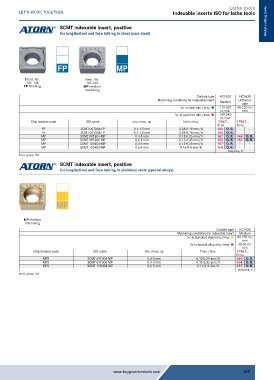

Page 325 - Buy Premium Tools ATORN Catalogue

Lathe tools
Indexable inserts ISO for lathe tools

SCMT indexable insert, positive Metal cutting tools
for longitudinal and face lathing in steel (cast steel)

FP MP

Ident. No. Ident. No.
142–144 147–160
FP finishing MP medium
machining
Carbide type HC7620 HC7630
Machining conditions for indexable insert Medium Unfavour-
able
Vc in steel min./max. ˜ 110-320 80-220 m/
m/min min
Vc in cast iron min./max. ˜ 140-240 -
m/min
Chip breaker code ISO name min./max. ap f min./max. 17867... 17867...
ID no. ID no.
FP SCMT 09T304-FP 0.1-1.5 mm 0.05-0.15 mm/U 142 O. R. - -
FP SCMT 09T308-FP 0.1-1.8 mm 0.05-0.18 mm/U 144 O. R. - -
MP SCMT 09T304-MP 0.4-3 mm 0.12-0.25 mm/U 147 O. R. 148 O. R.
MP SCMT 09T308-MP 0.6-4 mm 0.16-0.35 mm/U 152 O. R. 153 O. R.
MP SCMT 120404-MP 0.4-3 mm 0.12-0.25 mm/U 157 O. R. - -
MP SCMT 120408-MP 0.6-4 mm 0.16-0.4 mm/U 160 O. R. - -
Unit price, €
Prod. group 156
SCMT indexable insert, positive
for longitudinal and face lathing in stainless steel (special alloys)

MP

MP medium
machining
Carbide type HC7520
Machining conditions for indexable insert Medium
Vc in stainless steel min./max. ˜ 80-220 m/
min
Vc in special alloy min./max. ˜ 30-60 m/
min
Chip breaker code ISO name min./max. ap f min./max. 17867...
ID no.
MPX SCMT 09T304-MP 0.4-3 mm 0.12-0.25 mm/U 650 O. R.
MPX SCMT 09T308-MP 0.6-4 mm 0.16-0.35 mm/U 654 O. R.
MPX SCMT 120408-MP 0.6-5 mm 0.16-0.4 mm/U 657 O. R.
Unit price, €
Prod. group 156
