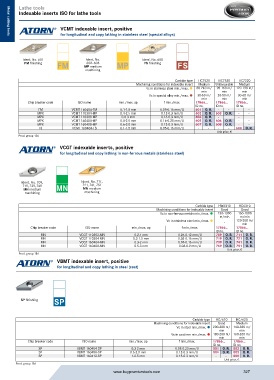

Page 327 - Buy Premium Tools ATORN Catalogue

Lathe tools
Indexable inserts ISO for lathe tools

VCMT indexable insert, positive
for longitudinal and copy lathing in stainless steel (special alloys)
Metal cutting tools

Ident. No. 601 Ident. No. Ident. No. 680
FM finishing 602–608 FS finishing
FM MP medium MP FS
machining
Carbide type HC7520 HC7530 HC7220
Machining conditions for indexable insert Medium Unfavourable Medium
Vc in stainless steel min./max. ˜ 80-240 m/ 90-160 m/ 120-190 m/
min min min
Vc in special alloy min./max. ˜ 30-60 m/ 20-50 m/ 30-60 m/
min min min
Chip breaker code ISO name min./max. ap f min./max. 17866... 17866... 17866...
ID no. ID no. ID no.
FM VCMT 160404-FM 0.1-1.5 mm 0.05-0.16 mm/U 601 O. R. - - - -
MPX VCMT 110304-MP 0.4-2.5 mm 0.12-0.3 mm/U 602 O. R. 603 O. R. - -
MPX VCMT 110308-MP 0.6-3 mm 0.16-0.3 mm/U 604 O. R. - - - -
MPX VCMT 160404-MP 0.4-2.5 mm 0.16-0.25 mm/U 605 O. R. 606 O. R. - -
MPX VCMT 160408-MP 0.6-3.0 mm 0.12-0.3 mm/U 607 O. R. 608 O. R. - -
FS VCMT 160404-FS 0.1-1.5 mm 0.05-0.16 mm/U - - - - 680 O. R.
Unit price, €
Prod. group 156
VCGT indexable inserts, positive
for longitudinal and copy lathing in non-ferrous metals (stainless steel)

Ident. No. 709, Ident. No. 711,
719, 739, 749 721, 741, 751
MN medium MN MN medium
machining machining

Carbide type HW6310 HC6310
Machining conditions for indexable insert Good Good
Vc in non-ferrous metals min./max. ˜ 130-1300 160-1000
m/min m/min
Vc in stainless steel min./max. ˜ - 120-200 m/
min
Chip breaker code ISO name min./max. ap f min./max. 17866... 17866...
ID no. ID no.
MN VCGT 110302-MN 0.2-1 mm 0.04-0.12 mm/U 709 O. R. 711 O. R.
MN VCGT 110304-MN 0.3-1.5 mm 0.05-0.16 mm/U 719 O. R. 721 O. R.
MN VCGT 160404-MN 0.3-2 mm 0.05-0.16 mm/U 739 O. R. 741 O. R.
MN VCGT 160408-MN 0.5-3 mm 0.08-0.2 mm/U 749 O. R. 751 O. R.
Unit price, €
Prod. group 156
VBMT indexable insert, positive
for longitudinal and copy lathing in steel (cast)

SP
SP finishing

Carbide type HC7610 HC7620
Machining conditions for indexable insert Good Medium
Vc in steel min./max. ˜ 200-380 m/ 140-320 m/
min min
Vc in cast iron min./max. ˜ 180-280 m/ 160-260 m/
min min
Chip breaker code ISO name min./max. ap f min./max. 17866... 17866...
ID no. ID no.
SP VBMT 160404-SP 0.3-2 mm 0.08-0.25 mm/U 001 O. R. 002 O. R.
SP VBMT 160408-SP 0.6-2.5 mm 0.12-0.3 mm/U 004 O. R. 005 O. R.
SP VBMT 160412-SP 1-2.5 mm 0.15-0.3 mm/U - - 008 O. R.
Unit price, €
Prod. group 156
