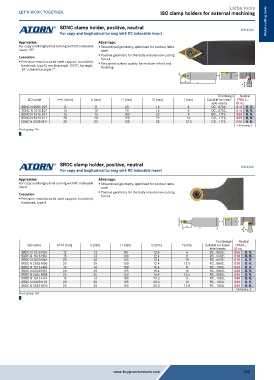

Page 332 - Buy Premium Tools ATORN Catalogue

Lathe tools
ISO clamp holders for external machining

SDNC clamp holder, positive, neutral DIN 4983 Metal cutting tools
For copy and longitudinal turning with DC indexable insert
Application: Advantage:
For copy and longitudinal turning with DC indexable ƒ Streamlined geometry, optimised for contour lathe
insert, 55° work
Execution: ƒ Positive geometry for the body ensures low cutting
forces
ƒ Precision-manufactured steel support, burnished, ƒ Very good surface quality for medium infeed and
hardened, type D, working angle 107.5°, tip angle finishing
55°, clearance angle 7°
f
b h1 h
l2
l1
Tool design Neutral
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for index- 17861...
able inserts ID no.
SDNC N 0808 D07 8 8 60 16 4 DC.. 0702.. 010 O. R.
SDNC N 1010 E07 10 10 70 16 5 DC.. 0702.. 015 O. R.
SDNC N 1616 H11 16 16 100 22 8 DC.. 11T3.. 020 O. R.
SDNC N 2020 K11 20 20 125 22 10 DC.. 11T3.. 025 O. R.
SDNC N 2525 M11 25 25 150 22 12.5 DC.. 11T3.. 030 O. R.
Unit price, €
Prod. group 107

SRDC clamp holder, positive, neutral
For copy and longitudinal turning with RC indexable insert DIN 4983
Application: Advantage:
For copy and longitudinal turning with RC indexable ƒ Streamlined geometry, optimised for contour lathe
insert work
Execution: ƒ Positive geometry for the body ensures low cutting
forces
ƒ Precision-manufactured steel support, burnished,
hardened, type R

f
d b h1 h
f
l2
l1
Tool design Neutral
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for index- 17924...
able inserts ID no.
SRDC N 1212 F06 12 12 80 12.4 6 RC.. 0602.. 005 O. R.
SRDC N 1616 H06 16 16 100 12.4 8 RC.. 0602.. 010 O. R.
SRDC N 2020 K06 20 20 125 12.4 10 RC.. 0602.. 015 O. R.
SRDC N 2525 M06 25 25 150 12.4 12.5 RC.. 0602.. 020 O. R.
SRDC N 1616 H08 16 16 100 16.4 8 RC.. 1003.. 025 O. R.
SRDC N 2020 K08 20 20 125 16.4 10 RC.. 0803.. 030 O. R.
SRDC N 2525 M08 25 25 150 16.4 12.5 RC.. 0803.. 035 O. R.
SRDC N 1616 H10 16 16 100 20.3 8 RC.. 1003.. 040 O. R.
SRDC N 2020 K10 20 20 125 20.3 10 RC.. 1003.. 045 O. R.
SRDC N 2525 M10 25 25 150 20.3 12.5 RC.. 1003.. 050 O. R.
Unit price, €
Prod. group 107

www.buypremiumtools.com 332
