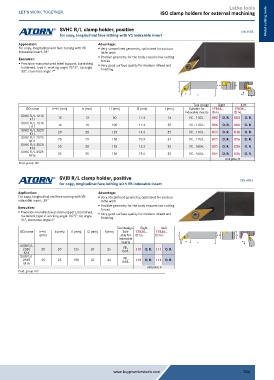

Page 334 - Buy Premium Tools ATORN Catalogue

Lathe tools
ISO clamp holders for external machining

SVHC R/L clamp holder, positive DIN 4983 Metal cutting tools
for copy, longitudinal face lathing with VC indexable insert

Application: Advantage:
For copy, longitudinal and face turning with VC ƒ Very streamlined geometry, optimised for contour
indexable insert, 35° lathe work
ƒ Positive geometry for the body ensures low cutting
Execution: forces
ƒ Precision-manufactured steel support, burnished, ƒ Very good surface quality for medium infeed and
hardened, type V, working angle 107.5°, tip angle finishing
35°, clearance angle 7°

b h1 h
f
l2
l1
Tool design Right Left
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for 17836... 17836...
indexable inserts ID no. ID no.
SVHC R/L 1212 12 12 80 11.4 16 VC.. 1103.. 002 O. R. 003 O. R.
F11
SVHC R/L 1616 16 16 100 11.4 20 VC.. 1103.. 004 O. R. 005 O. R.
H11
SVHC R/L 2020 20 20 125 14.6 25 VC.. 1103.. 011 O. R. 016 O. R.
K11
SVHC R/L 2525 25 25 150 20.9 32 VC.. 1103.. 021 O. R. 026 O. R.
M11
SVHC R/L 2020 20 20 125 13.2 25 VC.. 1604.. 031 O. R. 036 O. R.
K16
SVHC R/L 2525 041 O. R. 046 O. R.
M16 25 25 150 19.6 32 VC.. 1604..
Unit price, €
Prod. group 107
SVJB R/L clamp holder, positive
for copy, longitudinal face lathing with VB indexable insert DIN 4983

Application: Advantage:
For copy, longitudinal and face turning with VB ƒ Very streamlined geometry, optimised for contour
indexable insert, 35° lathe work
Execution: ƒ Positive geometry for the body ensures low cutting
forces
ƒ Precision-manufactured steel support, burnished, ƒ Very good surface quality for medium infeed and
hardened, type V, working angle 107.5°, tip angle finishing
35°, clearance angle 5°
Tool design Right Left
ISO name h=h1 b (mm) l1 (mm) l2 (mm) f (mm) Suit- 17836... 17836...
(mm) able for ID no. ID no. f b h1 h
indexable
inserts l2 l1
SVJB R/L
VB..
2020 20 20 125 37 25 1604.. 110 O. R. 111 O. R.
K16
SVJB R/L VB..
2525 25 25 150 37 32 1604.. 115 O. R. 116 O. R.
M16
Unit price, €
Prod. group 107
