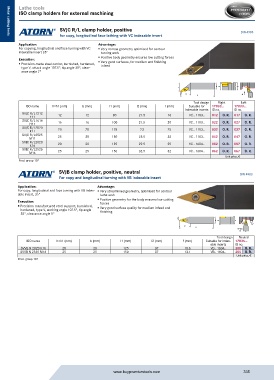

Page 335 - Buy Premium Tools ATORN Catalogue

Lathe tools
ISO clamp holders for external machining

SVJC R/L clamp holder, positive
for copy, longitudinal face lathing with VC indexable insert DIN 4983
Metal cutting tools
Metal cutting tools
Application: Advantage:
For copying, longitudinal and face turning with VC ƒ Very narrow geometry optimised for contour-
indexable insert 35° turning work
Execution: ƒ Positive body geometry ensures low cutting forces
ƒ Precision-made steel carrier, burnished, hardened, ƒ Very good surfaces, for medium and finishing
infeed
type V, attack angle 107.5°, tip angle 35°, clear-
ance angle 7°

b h1 h
f
l2
l1
Tool design Right Left
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for 17833... 17833...
indexable inserts ID no. ID no.
SVJC R/L1212 12 12 80 21.5 16 VC.. 1103.. 012 O. R. 017 O. R.
F11
SVJC R/L1616 16 16 100 21.5 20 VC.. 1103.. 022 O. R. 027 O. R.
H11
SVJC R/L2020 20 20 125 23 25 VC.. 1103.. 032 O. R. 037 O. R.
K11
SVJC R/L2525 25 25 150 25.5 32 VC.. 1103.. 042 O. R. 047 O. R.
M11
SVJC R/L2020 20 20 125 29.5 25 VC.. 1604.. 052 O. R. 057 O. R.
K16
SVJC R/L2525 25 25 150 32.5 32 VC.. 1604.. 062 O. R. 067 O. R.
M16
Unit price, €
Prod. group 107
SVJB clamp holder, positive, neutral
For copy and longitudinal turning with VB indexable insert DIN 4983
Application: Advantage:
For copy, longitudinal and face turning with VB index- ƒ Very streamlined geometry, optimised for contour
able insert, 35° lathe work
Execution: ƒ Positive geometry for the body ensures low cutting
forces
ƒ Precision-manufactured steel support, burnished, ƒ Very good surface quality for medium infeed and
hardened, type V, working angle 107.5°, tip angle finishing
35°, clearance angle 5°
f
b h1 h
20° 70°
l2
l1
Tool design Neutral
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for index- 17836...
able inserts ID no.
SVVB N 2020 K16 20 20 125 37 10.6 VB.. 1604.. 200 O. R.
SVVB N 2525 M16 25 25 150 37 13.1 VB.. 1604.. 205 O. R.
Unit price, €
Prod. group 107
