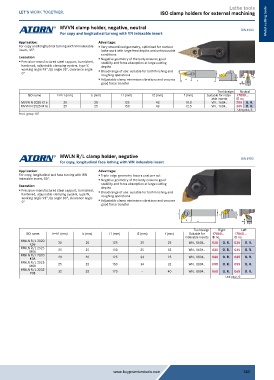

Page 340 - Buy Premium Tools ATORN Catalogue

Lathe tools
ISO clamp holders for external machining

MVVN clamp holder, negative, neutral DIN 4983 Metal cutting tools
For copy and longitudinal turning with VN indexable insert
Application: Advantage:
For copy and longitudinal turning with VN indexable ƒ Very streamlined geometry, optimised for contour
insert, 35°. lathe work with large feed depths and unfavourable
conditions
Execution: ƒ Negative geometry of the body ensures good
ƒ Precision-manufactured steel support, burnished, stability and force absorption at large cutting
hardened, adjustable clamping system, type V, depths
working angle 93°, tip angle 35°, clearance angle ƒ Broad range of use: suitable for both finishing and
0° roughing operations f b
ƒ Adjustable clamp minimises vibrations and ensures l2 l1 h1 h 20° 70°
good force transfer
Tool design Neutral
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for index- 17859...
able inserts ID no.
MVVN N 2020 K16 20 20 125 43 10.0 VN.. 1604.. 200 O. R.
MVVN N 2525 M16 25 25 150 43 12.5 VN.. 1604.. 205 O. R.
Unit price, €
Prod. group 107

MWLN R/L clamp holder, negative DIN 4983
for copy, longitudinal face lathing with WN indexable insert
Application: Advantage:
For copy, longitudinal and face turning with WN ƒ Triple-edge geometry lowers cost per cut
indexable insert, 80°. ƒ Negative geometry of the body ensures good
Execution: stability and force absorption at large cutting
depths
ƒ Precision-manufactured steel support, burnished, ƒ Broad range of use: suitable for both finishing and
hardened, adjustable clamping system, type W, roughing operations
working angle 93°, tip angle 80°, clearance angle
0° ƒ Adjustable clamp minimises vibrations and ensures
good force transfer
b
f
h1 h
l2
l1
Tool design Right Left
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for 17860... 17860...
indexable inserts ID no. ID no.
MWLN R/L 2020 20 20 125 25 25 WN.. 0604.. 020 O. R. 025 O. R.
K06
MWLN R/L 2525 25 25 150 25 32 WN.. 0604.. 030 O. R. 035 O. R.
M06
MWLN R/L 2020 20 20 125 34 25 WN.. 0804.. 040 O. R. 045 O. R.
K08
MWLN R/L 2525 25 25 150 34 32 WN.. 0804.. 050 O. R. 055 O. R.
M08
MWLN R/L 3232 32 32 170 - 40 WN.. 0804.. 060 O. R. 065 O. R.
P08
Unit price, €
