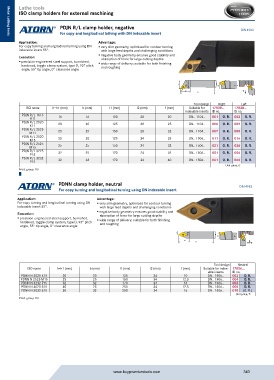

Page 343 - Buy Premium Tools ATORN Catalogue

Lathe tools
ISO clamp holders for external machining

PDJN R/L clamp holder, negative DIN 4983
for copy and longitudinal lathing with DN indexable insert
Metal cutting tools
Metal cutting tools
Application: Advantage:
For copy turning and longitudinal turning using DN ƒ very slim geometry, optimised for contour turning
indexable insert 55°. with large feed depths and challenging conditions
Execution: ƒ negative body geometry ensures good stability and
absorption of force for large cutting depths
ƒ precision-engineered steel support, burnished, ƒ wide range of delivery: suitable for both finishing
hardened, toggle clamp system, type D, 93° pitch and roughing
angle, 55° tip angle, 0° clearance angle

b
f
h1 h
l2
l1
Tool design Right Left
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for 17838... 17838...
indexable inserts ID no. ID no.
PDJN R/L 1616 001 O. R. 002 O. R.
H11 16 16 100 28 20 DN.. 1104..
PDJN R/L 2020 006 O. R. 009 O. R.
K11 20 20 125 28 25 DN.. 1104..
PDJN R/L 2525 007 O. R. 008 O. R.
M11 25 25 150 28 32 DN.. 1104..
PDJN R/L 2020 011 O. R. 016 O. R.
K15 20 20 125 34 25 DN.. 1506..
PDJN R/L 2525 021 O. R. 026 O. R.
M15 25 25 150 34 32 DN.. 1506..
PDJN R/L 3225 051 O. R. 056 O. R.
P15 32 25 170 24 32 DN.. 1506..
PDJN R/L 3232 061 O. R. 066 O. R.
P15 32 32 170 34 40 DN.. 1506..
Unit price, €
Prod. group 107
PDNN clamp holder, neutral DIN 4983
For copy turning and longitudinal turning using DN indexable insert
Application: Advantage:
For copy turning and longitudinal turning using DN ƒ very slim geometry, optimised for contour turning
indexable insert 55°. with large feed depths and challenging conditions
Execution: ƒ negative body geometry ensures good stability and
absorption of force for large cutting depths
ƒ precision-engineered steel support, burnished, ƒ wide range of delivery: suitable for both finishing
hardened, toggle clamp system, type D, 93° pitch and roughing
angle, 55° tip angle, 0° clearance angle
f
b
h1 h
l2
l1

Tool design Neutral
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for index- 17856...
able inserts ID no.
PDNN N 2020 K15 20 20 125 34 10 DN.. 1506.. 002 O. R.
PDNN N 2525 M15 25 25 150 34 12.5 DN.. 1506.. 004 O. R.
PDNN N 3232 P15 32 32 170 34 16 DN.. 1506.. 006 O. R.
PDNN N 4025 S15 40 25 250 34 12.5 DN.. 1506.. 008 O. R.
PDNN N 5032 S15 50 32 250 34 16 DN.. 1506.. 010 (O. R.)
Unit price, €
Prod. group 107
