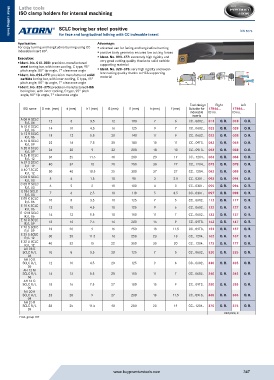

Page 347 - Buy Premium Tools ATORN Catalogue

Lathe tools
ISO clamp holders for internal machining

SCLC boring bar steel positive
for face and longitudinal lathing with CC indexable insert DIN 8024
Metal cutting tools
Metal cutting tools
Application: Advantage:
For copy turning and longitudinal turning using CC ƒ universal use for facing and longitudinal turning
indexable insert 80°. ƒ positive body geometry ensures low cutting forces
Execution: ƒ Ident. No. 093–177: extremely high rigidity and
ƒ Ident. No. 013–088: precision-manufactured very good cutting quality thanks to solid carbide
supporting material
steel boring bar, with inner cooling, C type, 95°
pitch angle, 80° tip angle, 7° clearance angle ƒ Ident. No. 320–375: very high rigidity and excel-
ƒ Ident. No. 093–177: precision-manufactured solid lent cutting quality thanks to HSS supporting d ØDmin.
material
carbide boring bar, with inner cooling, C type, 95° f h1 h
pitch angle, 80° tip angle, 7° clearance angle l2
ƒ Ident. No. 320–375: precision-manufactured HSS l1
boring bar, with inner cooling, C type, 95° pitch
angle, 80° tip angle, 7° clearance angle
Tool design Right Left
ISO name D min. (mm) d (mm) h1 (mm) l2 (mm) l1 (mm) h (mm) f (mm) Suitable for 17846... 17846...
indexable ID no. ID no.
inserts
A 08 H SCLC 013 O. R. 018 O. R.
R/L 06 12 8 3.5 12 100 7 6 CC.. 0602..
A 10 K SCLC 023 O. R. 028 O. R.
R/L 06 14 10 4.5 16 125 9 7 CC.. 0602..
A 12 R SCLC 033 O. R. 038 O. R.
R/L 06 18 12 5.5 20 140 11 9 CC.. 0602..
A 16 Q SCLC 043 O. R. 048 O. R.
R/L 09 22 16 7.5 25 180 15 11 CC.. 09T3..
A 20 R SCLC 053 O. R. 058 O. R.
R/L 09 26 20 9 32 200 18 13 CC.. 09T3..
A 25 R SCLC 063 O. R. 068 O. R.
R/L 12 34 25 11.5 40 200 23 17 CC.. 1204..
A 32 S SCLC 073 O. R. 078 O. R.
R/L 12 40 32 15 20 250 30 22 CC.. 1204..
A 40 T SCLC 083 O. R. 088 O. R.
R/L 12 50 40 18.5 25 300 37 27 CC.. 1204..
C 04 G SCLC 093 O. R. 094 O. R.
R/L 03 5 4 1.5 10 90 3 2.5 CC.. 0301..
C 05 H SCLC 095 O. R. 096 O. R.
R/L 03 6 5 2 10 100 4 3 CC.. 0301..
E 06 J SCLC 097 O. R. 098 O. R.
R/L 03 7 6 2.5 10 110 5 3.5 CC.. 0301..
E 08 K SCLC 112 O. R. 117 O. R.
R/L 06 10 8 3.5 10 125 7 5 CC.. 0602..
E 10 K SCLC 122 O. R. 127 O. R.
R/L 06 12 10 4.5 10 125 9 6 CC.. 0602..
E 12 M SCLC 14 12 5.5 10 150 11 7 CC.. 0602.. 132 O. R. 137 O. R.
R/L 06
E 16 R SCLC 18 16 7.5 16 200 15 9 CC.. 09T3.. 142 O. R. 147 O. R.
R/L 09
E 20 S SCLC 23 20 9 16 250 18 11.5 CC.. 09T3.. 152 O. R. 157 O. R.
R/L 09
E 25 S SCLC 30 25 11.5 16 250 23 13 CC.. 1204.. 162 O. R. 167 O. R.
R/L 12
E 32 U SCLC 40 32 15 22 350 30 20 CC.. 1204.. 173 O. R. 177 O. R.
R/L 12
AH 08 K
SCLC R/L 10 8 3.5 20 125 7 5 CC.. 0602.. 320 O. R. 325 O. R.
06
AH 10 K
SCLC R/L 12 10 4.5 20 125 9 6 CC.. 0602.. 330 O. R. 335 O. R.
06
AH 12 M
SCLC R/L 14 12 5.5 20 150 11 7 CC.. 0602.. 340 O. R. 345 O. R.
06
AH 16 Q
SCLC R/L 18 16 7.5 27 180 15 9 CC.. 09T3.. 350 O. R. 355 O. R.
09
AH 20 R
SCLC R/L 23 20 9 27 200 18 11.5 CC.. 09T3.. 360 O. R. 365 O. R.
09
AH 25 R
SCLC R/L 28 25 11.5 40 200 23 14 CC.. 1204.. 370 O. R. 375 O. R.
09
Unit price, €
Prod. group 107
