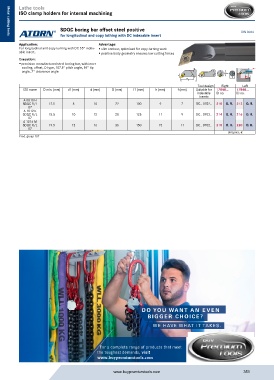

P. 351
Lathe tools
ISO clamp holders for internal machining
SDQC boring bar offset steel positive
for longitudinal and copy lathing with DC indexable insert DIN 8024
Metal cutting tools
Metal cutting tools
Application: Advantage:
For longitudinal and copy turning with DC 55° index- slim contour, optimised for copy turning work
able insert. positive body geometry ensures low cutting forces
Execution:
precision-manufactured steel boring bar, with inner
cooling, offset, D type, 107.5° pitch angle, 55° tip d
angle, 7° clearance angle
ØDmin.
f h1
h
l2
l1
Tool design Right Left
ISO name D min. (mm) d1 (mm) d (mm) l2 (mm) l1 (mm) h (mm) f (mm) Suitable for 17848... 17848...
indexable ID no. ID no.
inserts
A 0810 H
SDQC R/L 12.5 8 10 22 100 9 7 DC.. 0702.. 210 O. R. 212 O. R.
07
A 1012 K
SDQC R/L 15.5 10 12 28 125 11 9 DC.. 0702.. 214 O. R. 216 O. R.
07
A 1216 M
SDQC R/L 19.5 12 16 36 150 15 11 DC.. 0702.. 218 O. R. 220 O. R.
07
Unit price, €
Prod. group 107
