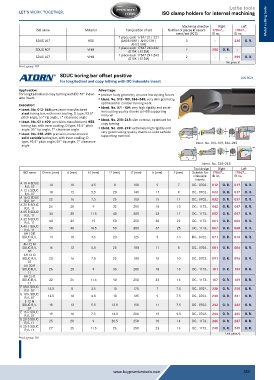

Page 350 - Buy Premium Tools ATORN Catalogue

Lathe tools
ISO clamp holders for internal machining

Machining direction Right Left Metal cutting tools
ISO name Material Composition of set Number of pieces in assort- 17847... 17847...
ment/set (PCS) ID no. ID no.
1 piece each 17847 217-221
SDUC L07 HSS (AH0810HK | AH1012H | 3 - - 235 O. R.
AH1216H)
SDUC R07 VHM 1 piece each 17847 240-242 2 250 O. R. - -
(E10K | E12M)
SDUC L07 VHM 1 piece each 17847 241-243 2 - - 255 O. R.
(E10K | E12M)
Set price, €
Prod. group 107
SDUC boring bar offset positive DIN 8024
for longitudinal and copy lathing with DC indexable insert

Application: Advantage:
For longitudinal and copy turning with DC 55° index- ƒ positive body geometry ensures low cutting forces
able insert. ƒ Ident. No. 012–109, 246–249: very slim geometry,
optimised for contour turning work
Execution: ƒ Ident. No. 071–109: very high rigidity and excel-
ƒ Ident. No. 012–068: precision-manufactured lent cutting quality thanks to HSS supporting
steel boring bar, with inner cooling, D type, 93.5° material
pitch angle, 55° tip angle, 7° clearance angle
ƒ Ident. No. 071–109: precision-manufactured HSS ƒ Ident. No. 238–245: slim contour, optimised for
copy turning
boring bar, with inner cooling, D type, 93.5° pitch d
angle, 55° tip angle, 7° clearance angle ƒ Ident. No. 238–249: extremely high rigidity and
ƒ Ident. No. 238–249: precision-manufactured very good cutting quality thanks to solid carbide f1 h1 ØDmin.
supporting material
solid carbide boring bar, with inner cooling, D l1 l2 H
type, 93.5° pitch angle, 55° tip angle, 7° clearance Ident. No. 012–109, 246–249
angle
d
ØDmin.
h1
f h
l2
l1
Ident. No. 238–245
Tool design Right Left
ISO name D min. (mm) d (mm) h1 (mm) l2 (mm) l1 (mm) h (mm) f (mm) Suitable for 17847... 17847...
indexable ID no. ID no.
inserts
A 10 H SDUC 14 10 4.5 8 100 9 7 DC.. 0702.. 012 O. R. 017 O. R.
R/L 07
A 12 L SDUC 18 12 5.5 20 140 11 9 DC.. 0702.. 022 O. R. 027 O. R.
R/L 07
A 16 Q SDUC 22 16 7.5 25 180 15 11 DC.. 0702.. 032 O. R. 037 O. R.
R/L 07
A 20 R SDUC 26 20 9 32 200 18 13 DC.. 11T3.. 042 O. R. 047 O. R.
R/L 11
A 25 R SDUC 34 25 11.5 40 200 23 17 DC.. 11T3.. 052 O. R. 057 O. R.
R/L 11
A 32 S SDUC 40 32 15 50 250 30 22 DC.. 11T3.. 061 O. R. 066 O. R.
R/L 11
A 40 T SDUC 50 40 18.5 50 300 37 25 DC.. 11T3.. 067 O. R. 068 O. R.
R/L 11
AH 10 K
SDUC R/L 14 10 4.5 20 125 9 7.5 DC.. 0702.. 071 O. R. 076 O. R.
07
AH 12 M
SDUC R/L 16 12 5.5 25 150 11 8 DC.. 0702.. 081 O. R. 086 O. R.
07
AH 16 Q
SDUC R/L 20 16 7.5 25 180 15 10 DC.. 0702.. 091 O. R. 096 O. R.
07
AH 20 R
SDUC R/L 26 20 9 30 200 18 13 DC.. 11T3.. 101 O. R. 103 O. R.
11
AH 25 R
SDUC R/L 32 25 11.5 40 200 23 16 DC.. 11T3.. 107 O. R. 109 O. R.
11
E 08 K SDUC 238 O. R. 239 O. R.
R/L 07 13.5 8 3.5 10 125 7 7.5 DC.. 0702..
E 10 K SDUC 240 O. R. 241 O. R.
R/L 07 13.5 10 4.5 10 125 9 7.5 DC.. 0702..
E 12 M
SDUC R/L 15 12 5.5 12.5 150 11 7.5 DC.. 0702.. 242 O. R. 243 O. R.
07
E 16 R SDUC 19 16 7.5 16.5 200 15 9.5 DC.. 0702.. 244 O. R. 245 O. R.
R/L 07
E 20 S SDUC 25 20 9 20.5 250 18 14 DC.. 11T3.. 246 O. R. 247 O. R.
R/L 11
E 25 S SDUC 27 25 11.5 26 250 23 16 DC.. 11T3.. 248 O. R. 249 O. R.
R/L 11
Unit price, €
Prod. group 107
