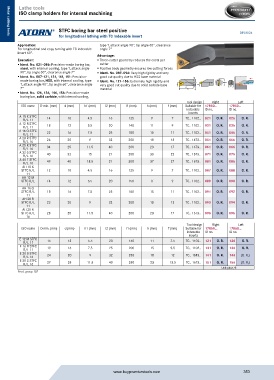

Page 353 - Buy Premium Tools ATORN Catalogue

Lathe tools
ISO clamp holders for internal machining

STFC boring bar steel positive DIN 8024
for longitudinal lathing with TC indexable insert
Metal cutting tools
Metal cutting tools
Application: type T, attack angle 90°, tip angle 60°, clearance
For longitudinal and copy turning with TC indexable angle 7°
insert 60°.
Advantage:
Execution: ƒ Three-cutter geometry reduces the costs per
ƒ Ident. No. 021–086: Precision-made boring bar, cutter
steel, with internal cooling, type T, attack angle ƒ Positive body geometry ensures low cutting forces
90°, tip angle 60°, clearance angle 7° ƒ Ident. No. 087–096: Very high rigidity and very
ƒ Ident. No. 087–121, 131, 141, 151: Precision- good cut quality due to HSS base material d
made boring bar, HSS, with internal cooling, type ƒ Ident. No. 121–156: Extremely high rigidity and
T, attack angle 90°, tip angle 60°, clearance angle very good cut quality due to solid carbide base f h1 ØDmin.
7° material l2 l1 h
ƒ Ident. No. 126, 136, 146, 156: Precision-made
boring bar, solid carbide, with internal cooling,
Tool design Right Left
ISO name D min. (mm) d (mm) h1 (mm) l2 (mm) l1 (mm) h (mm) f (mm) Suitable for 17850... 17850...
indexable ID no. ID no.
inserts
A 10 K STFC 021 O. R. 026 O. R.
R/L 11 14 10 4.5 16 125 9 7 TC.. 1102..
A 12 R STFC 031 O. R. 036 O. R.
R/L 11 18 12 5.5 20 140 11 9 TC.. 1102..
A 16 Q STFC 041 O. R. 046 O. R.
R/L 11 22 16 7.5 25 180 15 11 TC.. 1102..
A 20 R STFC 051 O. R. 056 O. R.
R/L 16 26 20 9 32 200 18 13 TC.. 16T3..
A 25 R STFC 061 O. R. 066 O. R.
R/L 16 34 25 11.5 40 200 23 17 TC.. 16T3..
A 32 S STFC 071 O. R. 076 O. R.
R/L 16 40 32 15 21 250 30 22 TC.. 16T3..
A 40 T STFC 081 O. R. 086 O. R.
R/L 16 49 40 18.5 21 300 37 27 TC.. 16T3..
AH 10 K
STFC R/L 12 10 4.5 16 125 9 7 TC.. 1102.. 087 O. R. 088 O. R.
11
AH 12 M
STFC R/L 14 12 5.5 20 150 11 9 TC.. 1102.. 089 O. R. 090 O. R.
11
AH 16 Q
STFC R/L 18 16 7.5 25 180 15 11 TC.. 1102.. 091 O. R. 092 O. R.
11
AH 20 R
STFC R/L 23 20 9 32 200 18 13 TC.. 1102.. 093 O. R. 094 O. R.
11
AH 25 R
STFC R/L 28 25 11.5 40 200 23 17 TC.. 16T3.. 095 O. R. 096 O. R.
16
Tool design Right Left
ISO name D min. (mm) d (mm) h1 (mm) l2 (mm) l1 (mm) h (mm) f (mm) Suitable for 17850... 17850...
indexable ID no. ID no.
inserts
E 12 M STFC 121 O. R. 126 O. R.
R/L 11 15 12 5.5 20 150 11 7.5 TC.. 1102..
E 16 R STFC 131 O. R. 136 O. R.
R/L 11 19 16 7.5 25 200 15 9.5 TC.. 1102..
E 20 S STFC 141 O. R. 146
R/L 16 24 20 9 32 250 18 12 TC.. 16T3.. (O. R.)
E 25 S STFC 151 O. R. 156
R/L 16 27 25 11.5 40 250 23 13.5 TC.. 16T3.. (O. R.)
Unit price, €
Prod. group 107
