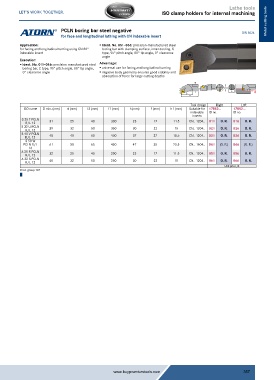

Page 357 - Buy Premium Tools ATORN Catalogue

Lathe tools
ISO clamp holders for internal machining

PCLN boring bar steel negative DIN 8024 Metal cutting tools
for face and longitudinal lathing with CN indexable insert
Application: ƒ Ident. No. 051–066: precision-manufactured steel
for facing and longitudinal turning using CN 80° boring bar with clamping surface, inner cooling, C
indexable insert type, 95° pitch angle, 80° tip angle, 0° clearance
angle
Execution:
ƒ Ident. No. 011–046: precision-manufactured steel Advantage:
boring bar, C type, 95° pitch angle, 80° tip angle, ƒ universal use for facing and longitudinal turning
0° clearance angle ƒ negative body geometry ensures good stability and
absorption of force for large cutting depths
d
ØDmin.
h1
f
h
l2
l1
Tool design Right Left
ISO name D min. (mm) d (mm) l2 (mm) l1 (mm) h (mm) f (mm) h1 (mm) Suitable for 17852... 17852...
indexable ID no. ID no.
inserts
S 25 T PCLN 011 O. R. 016 O. R.
R/L 12 31 25 40 300 23 17 11.5 CN.. 1204..
S 32 U PCLN 021 O. R. 026 O. R.
R/L 12 39 32 50 350 30 22 15 CN.. 1204..
S 40 V PCLN 031 O. R. 036 O. R.
R/L 12 48 40 60 400 37 27 18.5 CN.. 1204..
S 50 W
PCLN R/L 61 50 65 450 47 35 23.5 CN.. 1604.. 041 (O. R.) 046 (O. R.)
16
A 25 R PCLN 32 25 40 200 23 17 11.5 CN.. 1204.. 051 O. R. 056 O. R.
R/L 12
A 32 S PCLN 40 32 50 250 30 22 15 CN.. 1204.. 061 O. R. 066 O. R.
R/L 12
Unit price, €
Prod. group 107
