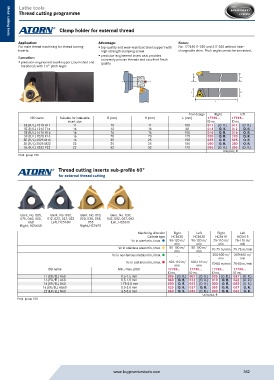

Page 362 - Buy Premium Tools ATORN Catalogue

Lathe tools
Thread cutting programme

Clamp holder for external thread
Metal cutting tools
Metal cutting tools
Application: Advantage: Notes:
For male thread machining for thread turning ƒ top-quality and wear-resistant steel support with No. 17745011-020 and 311-320 without inter-
inserts. high-strength clamping screw changeable shim. Pitch angle cannot be corrected.
Execution: ƒ precision-engineered insert seat provides
extremely precise threads and excellent finish
ƒ precision-engineered steel support, burnished and quality
hardened, with 1.5° pitch angle

H B

F B
L

Tool design Right Left
ISO name Suitable for indexable B (mm) H (mm) L (mm) 17745... 17745...
insert size ID no. ID no.
SE (R/L) 1010 H11 11 10 11 100 011 (O. R.) 311 (O. R.)
SE (R/L) 1212 F16 16 12 16 80 013 O. R. 312 O. R.
SE (R/L) 1616 H16 16 16 16 100 016 O. R. 316 O. R.
SE (R/L) 2020 K16 16 20 20 125 020 O. R. 320 O. R.
SE (R/L) 2525 M16 16 25 25 150 025 O. R. 325 O. R.
SE (R/L) 2525 M22 22 25 25 150 050 O. R. 350 O. R.
SE (R/L) 3232 P22 22 32 32 170 055 (O. R.) 355 (O. R.)
Unit price, €
Prod. group 158

Thread cutting inserts sub-profile 60°
for external thread cutting

Ident. No. 005, Ident. No. 007, Ident. No. 010, Ident. No. 037,
025, 040, 050, 012, 022, 027, 032 020, 030, 035, 042, 052, 057, 062
060 Left, HC5630 055 Left, HC5615
Right, HC5630 Right, HC5615
Machining direction Right Left Right Left
Carbide type HC5630 HC5630 HC5615 HC5615
Vc in steel min./max. ˜ 90-120 m/ 90-120 m/ 75-110 m/ 75-110 m/
min min min min
Vc in stainless steel min./max. ˜ 80-100 m/ 80-100 m/ 70-75 m/min 70-75 m/min
min min
Vc in non-ferrous metals min./max. ˜ - - 200-600 m/ 200-600 m/
min
min
Vc in cast iron min./max. ˜ 100-110 m/ 100-110 m/ 70-80 m/min 70-80 m/min
min min
ISO name Min./max. pitch 17735... 17735... 17735... 17735...
ID no. ID no. ID no. ID no.
11 (ER/EL) A60 0.5-1.5 mm 005 (O. R.) 007 (O. R.) 035 (O. R.) 037 (O. R.)
16 (ER/EL) A60 0.5-1.5 mm 040 O. R. 012 (O. R.) 010 O. R. 042 (O. R.)
16 (ER/EL) G60 1.75-3.0 mm 050 O. R. 022 (O. R.) 020 O. R. 052 (O. R.)
16 (ER/EL) AG60 0.5-3.0 mm 025 O. R. 027 O. R. 055 O. R. 057 O. R.
22 (ER/EL) N60 3.5-5.0 mm 060 O. R. 032 (O. R.) 030 O. R. 062 O. R.
Unit price, €
Prod. group 158
