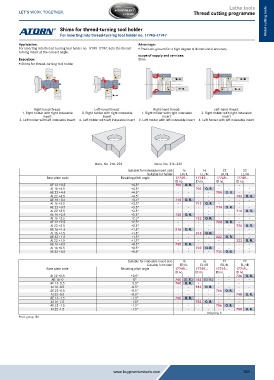

P. 361
Lathe tools
Thread cutting programme
Shims for thread-turning tool holder Metal cutting tools
For inserting into thread-turning tool holder no. 17745-17747
Application: Advantage:
For inserting into thread-turning tool holder no. 17745-17747. Sets the thread- Precision-ground for a high degree of dimensional accuracy
turning insert at the correct angle.
scope of supply and services:
Execution: Shim
Shims for thread-turning tool holder
2 2
1
1
Right-hand thread: Left-hand thread: Right-hand thread: Left-hand thread:
1. Right holder with right indexable 3. Right holder with right indexable 1. Right holder with right indexable 3. Right holder with right indexable
insert insert insert insert
2. Left holder with left indexable insert 4. Left holder with left indexable insert 2. Left holder with left indexable insert 4. Left holder with left indexable insert
Ident. No. 216–222 Ident. No. 316–322
Suitable for indexable insert size 16 16 22 22
Suitable for holder ER/IL EL/IR ER/IL EL/IR
Base plate code Resulting pitch angle 17749... 17749... 17749... 17749...
ID no. ID no. ID no. ID no.
AE 16 +4.5 +4.5° 700 O. R. - - - - - -
AI 16 +4.5 +4.5° - - 702 O. R. - - - -
AE 22 +4.5 +4.5° - - - - 704 O. R. - -
AI 22 +4.5 +4.5° - - - - - - 706 O. R.
AE 16 +3.5 +3.5° 710 O. R. - - - - - -
AI 16 +3.5 +3.5° - - 712 O. R. - - - -
AE 22 +3.5 +3.5° - - - - 714 O. R. - -
AI 22 +3.5 +3.5° - - - - - - 716 O. R.
AE 16 +2.5 +2.5° 720 O. R. - - - - - -
AI 16 +2.5 +2.5° - - 722 O. R. - - - -
AE 22 +2.5 +2.5° - - - - 724 O. R. - -
AI 22 +2.5 +2.5° - - - - - - 726 O. R.
AE 16 +1.5 +1.5° 216 O. R. - - - - - -
AI 16 +1.5 +1.5° - - 316 O. R. - - - -
AE 22 +1.5 +1.5° - - - - 222 O. R. - -
AI 22 +1.5 +1.5° - - - - - - 322 O. R.
AE 16 +0.5 +0.5° 730 O. R. - - - - - -
AI 16 +0.5 +0.5° - - 732 O. R. - - - -
AE 22 +0.5 +0.5° - - - - 734 O. R. - -
Suitable for indexable insert size 16 16 22 22
Suitable for holder ER/IL EL/IR ER/IL EL/IR
Base plate code Resulting pitch angle 17749... 17749... 17749... 17749...
ID no. ID no. ID no. ID no.
AI 22 +0.5 +0.5° - - - - - - 736 O. R.
AE 16 -0 0° 760 (O. R.) 762 (O. R.) - - - -
AE 16 -0.5 -0.5° 740 O. R. - - - - - -
AI 16 -0.5 -0.5° - - 742 O. R. - - - -
AE 22 -0.5 -0.5° - - - - 746 O. R. - -
AI 22 -0.5 -0.5° - - - - - - 748 O. R.
AE 16 -1.5 -1.5° 750 O. R. - - - - - -
AI 16 -1.5 -1.5° - - 752 O. R. - - - -
AE 22 -1.5 -1.5° - - - - 756 O. R. - -
AI 22 -1.5 -1.5° - - - - - - 758 O. R.
Unit price, €
Prod. group 158
