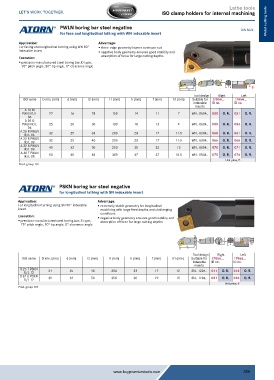

Page 359 - Buy Premium Tools ATORN Catalogue

Lathe tools
ISO clamp holders for internal machining

PWLN boring bar steel negative DIN 8024 Metal cutting tools
for face and longitudinal lathing with WN indexable insert
Application: Advantage:
For facing and longitudinal turning using WN 80° ƒ three-edge geometry lowers costs per cut
indexable insert ƒ negative body geometry ensures good stability and
Execution: absorption of force for large cutting depths
ƒ precision-manufactured steel boring bar, D type,
95° pitch angle, 80° tip angle, 0° clearance angle

d
ØDmin.
f h1
h
L2
L1
Tool design Right Left
ISO name D min. (mm) d (mm) l2 (mm) l1 (mm) h (mm) f (mm) h1 (mm) Suitable for 17854... 17854...
indexable ID no. ID no.
inserts
A 16 M
PWLN R/L 22 16 28 150 14 11 7 WN.. 0604.. 050 O. R. 051 O. R.
06
A 20 Q
PWLN R/L 25 20 30 180 18 13 9 WN.. 0604.. 055 O. R. 056 O. R.
06
A 25 R PWLN 060 O. R. 061 O. R.
R/L 06 32 25 33 200 23 17 11.5 WN.. 0604..
A 25 R PWLN 065 O. R. 066 O. R.
R/L 08 32 25 40 200 23 17 11.5 WN.. 0804..
A 32 S PWLN 070 O. R. 071 O. R.
R/L 08 40 32 50 250 30 22 15 WN.. 0804..
A 40 T PWLN 075 O. R. 076 O. R.
R/L 08 50 40 63 300 37 27 18.5 WN.. 0804..
Unit price, €
Prod. group 107

PSKN boring bar steel negative
for longitudinal lathing with SN indexable insert

Application: Advantage:
For longitudinal turning using SN 90° indexable ƒ extremely stable geometry for longitudinal
insert machining with large feed depths and challenging
conditions
Execution: ƒ negative body geometry ensures good stability and
ƒ precision-manufactured steel boring bar, S type, absorption of force for large cutting depths
75° pitch angle, 90° tip angle, 0° clearance angle

d
h1 ØDmin.
f
h
l2
l1
Tool design Right Left
ISO name D min. (mm) d (mm) l2 (mm) l1 (mm) h (mm) f (mm) h1 (mm) Suitable for 17856... 17856...
indexable ID no. ID no.
inserts
S 25 T PSKN 31 25 40 300 23 17 12 SN.. 1204.. 011 O. R. 016 O. R.
R/L 12
S 32 U PSKN 39 32 50 350 30 22 15 SN.. 1204.. 021 O. R. 026 O. R.
R/L 12
Unit price, €
Prod. group 107
