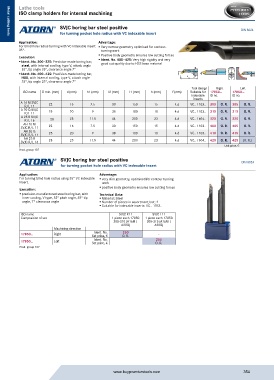

Lathe tools
ISO clamp holders for internal machining

SVJC boring bar steel positive DIN 8024
for turning pocket hole radius with VC indexable insert
Metal cutting tools
Metal cutting tools
Application: Advantage:
For blind hole radius turning with VC indexable insert ƒ Very narrow geometry optimised for contour-
35°. turning work
Execution: ƒ Positive body geometry ensures low cutting forces
ƒ Ident. No. 300–325: Precision-made boring bar, ƒ Ident. No. 400–425: Very high rigidity and very
good cut quality due to HSS base material
steel, with internal cooling, type V, attack angle
52°, tip angle 35°, clearance angle 7° d ØDmin.
ƒ Ident. No. 400–425: Precision-made boring bar, f h1
HSS, with internal cooling, type V, attack angle l2 l1 h
52°, tip angle 35°, clearance angle 7°
Tool design Right Left
ISO name D min. (mm) d (mm) h1 (mm) l2 (mm) l1 (mm) h (mm) f (mm) Suitable for 17850... 17850...
indexable ID no. ID no.
inserts
A 16 M SVJC 22 16 7.5 30 150 15 4.6 VC.. 1103.. 300 O. R. 305 O. R.
R/L 11
A 20 Q SVJC 25 20 9 38 180 18 4.6 VC.. 1103.. 310 O. R. 315 O. R.
R/L 11
A 25 R SVJC 320 O. R. 325 O. R.
R/L 16 28 25 11.5 44 200 23 4.6 VC.. 1604..
AH 16 M 400 O. R. 405 O. R.
SVJC R/L 11 22 16 7.5 30 150 15 4.6 VC.. 1103..
AH 20 Q 410 O. R. 415 O. R.
SVJC R/L 11 25 20 9 38 180 18 4.6 VC.. 1103..
AH 25 R 420 O. R. 425
SVJC R/L 16 28 25 11.5 44 200 23 4.6 VC.. 1604.. (O. R.)
Unit price, €
Prod. group 107
SVJC boring bar steel positive DIN 8024
for turning pocket hole radius with VC indexable insert

Application: Advantage:
For turning blind hole radius using 35° VC indexable ƒ very slim geometry, optimised for contour turning
insert. work
Execution: ƒ positive body geometry ensures low cutting forces
ƒ precision-manufactured steel boring bar, with Technical Data:
inner cooling, V type, 52° pitch angle, 35° tip ƒ Material: Steel
angle, 7° clearance angle ƒ Number of pieces in assortment/set: 2
ƒ Suitable for indexable inserts: VC.. 1103..
ISO name SVJC R11 SVJC L11
Composition of set 1 piece each 17850 1 piece each 17850
300-310 (A16M | 305-315 (A16M |
A20Q) A20Q)
Machining direction
250
Ident. No.
17850... Right Set price, € O. R. -
255
Ident. No.
17850... Left Set price, € - O. R.
Prod. group 107
