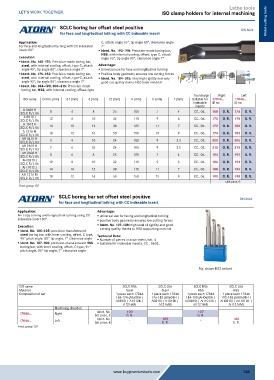

Lathe tools
ISO clamp holders for internal machining

SCLC boring bar offset steel positive DIN 8024 Metal cutting tools
for face and longitudinal lathing with CC indexable insert
Application: C, attack angle 95°, tip angle 80°, clearance angle
For face and longitudinal turning with CC indexable 7°
insert 80°. ƒ Ident. No. 192–198: Precision-made boring bar,
HSS, with internal cooling, offset, type C, attack
Execution: angle 95°, tip angle 80°, clearance angle 7°
ƒ Ident. No. 168–174: Precision-made boring bar,
steel, with internal cooling, offset, type C, attack Advantage:
angle 95°, tip angle 80°, clearance angle 7° ƒ Universal use for face and longitudinal turning
ƒ Ident. No. 176–182: Precision-made boring bar, ƒ Positive body geometry ensures low cutting forces d ØDmin.
steel, with internal cooling, offset, type C, attack ƒ Ident. No. 184–315: Very high rigidity and very f d1 h1 h
angle 95°, tip angle 80°, clearance angle 7° good cut quality due to HSS base material l2 l1
ƒ Ident. No. 184–190, 300–315: Precision-made
boring bar, HSS, with internal cooling, offset, type
Tool design Right Left
ISO name D min. (mm) d1 (mm) d (mm) l2 (mm) l1 (mm) h (mm) f (mm) Suitable for 17846... 17846...
indexable ID no. ID no.
inserts
A 0608 H 168 O. R. 176 O. R.
SCLC R/L 06 8 6 8 25 100 7 4 CC.. 06..
A 0810 J 170 O. R. 178 O. R.
SCLC R/L 06 12 8 10 32 110 9 6 CC.. 06..
A 1012 K 172 O. R. 180 O. R.
SCLC R/L 06 14 10 12 38 125 11 7 CC.. 06..
A 1216 M 174 O. R. 182 O. R.
SCLC R/L 06 18 12 16 50 150 15 9 CC.. 06..
AH 0410 H 300 O. R. 305 O. R.
SCLC R/L 03 5 4 10 24 100 9 2.5 CC.. 03..
AH 0610 H 310 O. R. 315 O. R.
SCLC R/L 03 7 6 10 24 100 9 2.5 CC.. 03..
AH 0608 H 184 O. R. 192 O. R.
SCLC R/L 06 8 6 8 25 100 7 4 CC.. 06..
AH 0810 J 186 O. R. 194 O. R.
SCLC R/L 06 12 8 10 32 110 9 6 CC.. 06..
AH 1012 J 188 O. R. 196 O. R.
SCLC R/L 06 14 10 12 38 110 11 7 CC.. 06..
AH 1216 M 190 O. R. 198 O. R.
SCLC R/L 06 18 12 16 50 150 15 9 CC.. 06..
Unit price, €
Prod. group 107
SCLC boring bar set offset steel positive DIN 8024
for face and longitudinal lathing with CC indexable insert
Application: Advantage:
For copy turning and longitudinal turning using CC ƒ universal use for facing and longitudinal turning
indexable insert 80°. ƒ positive body geometry ensures low cutting forces
Execution: ƒ Ident. No. 107–108: high level of rigidity and good
cutting quality thanks to HSS supporting material
ƒ Ident. No. 100–105: precision-manufactured
steel boring bar, with inner cooling, offset, C type, Technical Data:
95° pitch angle, 80° tip angle, 7° clearance angle ƒ Number of pieces in assortment/set: 4
ƒ Ident. No. 107–108: precision-manufactured HSS ƒ Suitable for indexable inserts: CC.. 0602..
boring bar, with inner cooling, offset, C type, 95°
pitch angle, 80° tip angle, 7° clearance angle

Fig. shows HSS variant

ISO name SCLC R06 SCLC L06 SCLC R06 SCLC L06
Material Steel Steel HSS HSS
Composition of set 1 piece each 17846 1 piece each 17846 1 piece each 17846 1 piece each 17846
168-174 (A0608H | 176-182 (A0608H | 184-190 (AH0608H | 192-198 (AH0608H |
A0810J | A1012K | A0810J | A1012K | AH0810J | AH1012K | AH0810J | AH1012K |
A1216M) A1216M) AH1216M) AH1216M)
Machining direction
107
100
Ident. No.
17846... Right Set price, € O. R. - O. R. -
105
108
Ident. No.
17846... Left Set price, € - O. R. - O. R.
Prod. group 107
