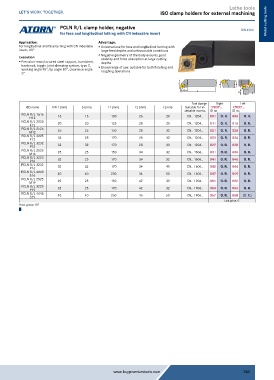

P. 342
Lathe tools
ISO clamp holders for external machining
PCLN R/L clamp holder, negative DIN 4983 Metal cutting tools
for face and longitudinal lathing with CN indexable insert
Application: Advantage:
For longitudinal and face turning with CN indexable Universal use for face and longitudinal turning with
insert, 80° large feed depths and unfavourable conditions
Execution: Negative geometry of the body ensures good
stability and force absorption at large cutting
Precision-manufactured steel support, burnished, depths
hardened, toggle-joint clamping system, type C, Broad range of use: suitable for both finishing and
working angle 95°, tip angle 80°, clearance angle roughing operations
0°
b
f h
h1
l2
l1
Tool design Right Left
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for in- 17837... 17837...
dexable inserts ID no. ID no.
PCLN R/L 1616 16 16 100 26 20 CN.. 1204.. 001 O. R. 006 O. R.
H12
PCLN R/L 2020 20 20 125 28 25 CN.. 1204.. 011 O. R. 016 O. R.
K12
PCLN R/L 2525 25 25 150 28 32 CN.. 1204.. 021 O. R. 026 O. R.
M12
PCLN R/L 3225 32 25 170 28 32 CN.. 1204.. 023 O. R. 024 O. R.
P12
PCLN R/L 3232 32 32 170 28 40 CN.. 1204.. 027 O. R. 028 O. R.
P12
PCLN R/L 2525 25 25 150 34 32 CN.. 1606.. 031 O. R. 036 O. R.
M16
PCLN R/L 3225 32 25 170 34 32 CN.. 1606.. 041 O. R. 046 O. R.
P16
PCLN R/L 3232 32 32 170 34 40 CN.. 1606.. 043 O. R. 044 O. R.
P16
PCLN R/L 4040 40 40 250 34 50 CN.. 1606.. 047 O. R. 049 O. R.
S16
PCLN R/L 2525 25 25 150 42 32 CN.. 1906.. 051 O. R. 052 O. R.
M19
PCLN R/L 3225 32 25 170 42 32 CN.. 1906.. 053 O. R. 054 O. R.
P19
PCLN R/L 4040 057 O. R. 058
S19 40 40 250 45 50 CN.. 1906.. (O. R.)
Unit price, €
Prod. group 107
