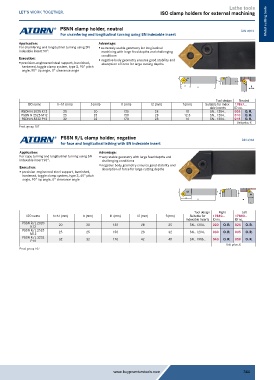

Page 344 - Buy Premium Tools ATORN Catalogue

Lathe tools
ISO clamp holders for external machining

PSNN clamp holder, neutral Metal cutting tools
For chamfering and longitudinal turning using SN indexable insert DIN 4983

Application: Advantage:
For chamfering and longitudinal turning using SN ƒ extremely stable geometry for longitudinal
indexable insert 90°. machining with large feed depths and challenging
conditions
Execution: ƒ negative body geometry ensures good stability and
ƒ precision-engineered steel support, burnished, absorption of force for large cutting depths
hardened, toggle clamp system, type S, 90° pitch
angle, 90° tip angle, 0° clearance angle
f
b
h1 h
l2
l1
Tool design Neutral
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for index- 17857...
able inserts ID no.
PSDN N 2020 K12 20 20 125 28 10 SN.. 1204.. 005 O. R.
PSDN N 2525 M12 25 25 150 28 12.5 SN.. 1204.. 010 O. R.
PSDN N 3232 P12 32 32 170 28 16 SN.. 1204.. 015 O. R.
Unit price, €
Prod. group 107
PSSN R/L clamp holder, negative DIN 4983
for face and longitudinal lathing with SN indexable insert
Application: Advantage:
For copy turning and longitudinal turning using SN ƒ very stable geometry with large feed depths and
indexable insert 90°. challenging conditions
ƒ negative body geometry ensures good stability and
Execution: absorption of force for large cutting depths
ƒ precision-engineered steel support, burnished,
hardened, toggle clamp system, type S, 45° pitch
angle, 90° tip angle, 0° clearance angle

f b
h1 h
l2
l1
Tool design Right Left
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for 17840... 17840...
indexable inserts ID no. ID no.
PSSN R/L 2020 20 20 125 28 25 SN.. 1204.. 020 O. R. 025 O. R.
K12
PSSN R/L 2525 25 25 150 28 32 SN.. 1204.. 030 O. R. 035 O. R.
M12
PSSN R/L 3232 32 32 170 42 40 SN.. 1906.. 040 O. R. 050 O. R.
P19
Unit price, €
Prod. group 107

www.buypremiumtools.com 344
