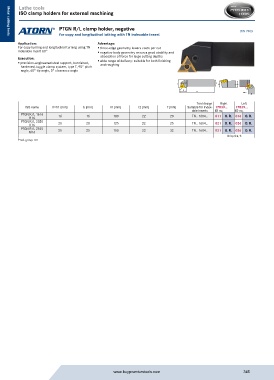

P. 345
Lathe tools
ISO clamp holders for external machining
PTGN R/L clamp holder, negative
for copy and longitudinal lathing with TN indexable insert DIN 4983
Metal cutting tools
Metal cutting tools
Application: Advantage:
For copy turning and longitudinal turning using TN three-edge geometry lowers costs per cut
indexable insert 60° negative body geometry ensures good stability and
Execution: absorption of force for large cutting depths
precision-engineered steel support, burnished, wide range of delivery: suitable for both finishing
and roughing
hardened, toggle clamp system, type T, 90° pitch
angle, 60° tip angle, 0° clearance angle
f b h1 h
l2
l1
Tool design Right Left
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for index- 17839... 17839...
able inserts ID no. ID no.
PTGN R/L 1616 16 16 100 22 20 TN.. 1604.. 011 O. R. 016 O. R.
H16
PTGN R/L 2020 20 20 125 22 25 TN.. 1604.. 021 O. R. 026 O. R.
K16
PTGN R/L 2525 25 25 150 22 32 TN.. 1604.. 031 O. R. 036 O. R.
M16
Unit price, €
Prod. group 107
