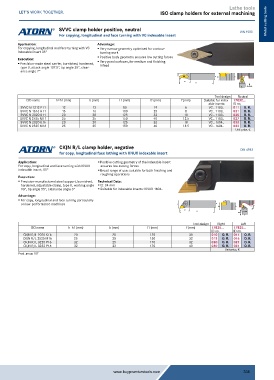

Page 336 - Buy Premium Tools ATORN Catalogue

Lathe tools
ISO clamp holders for external machining

SVVC clamp holder positive, neutral DIN 4983 Metal cutting tools
For copying, longitudinal and face turning with VC indexable insert

Application: Advantage:
For copying, longitudinal and face turning with VC ƒ Very narrow geometry optimised for contour-
indexable insert 35° turning work
Execution: ƒ Positive body geometry ensures low cutting forces
ƒ Precision-made steel carrier, burnished, hardened, ƒ Very good surfaces, for medium and finishing
infeed
type V, attack angle 107.5°, tip angle 35°, clear-
ance angle 7°
f
b h1 h
l2
l1
Tool design Neutral
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for index- 17832...
able inserts ID no.
SVVC N 1212 F11 12 12 80 19 6 VC.. 1103.. 011 O. R.
SVVC N 1616 H11 16 16 100 25 8 VC.. 1103.. 021 O. R.
SVVC N 2020 K11 20 20 125 32 10 VC.. 1103.. 025 O. R.
SVVC N 2525 M11 25 25 150 40 12.5 VC.. 1103.. 027 O. R.
SVVC N 2020 K16 20 20 125 32 10 VC.. 1604.. 033 O. R.
SVVC N 2525 M16 25 25 150 40 12.5 VC.. 1604.. 043 O. R.
Unit price, €

CKJN R/L clamp holder, negative DIN 4983
for copy, longitudinal face lathing with KNUX indexable insert

Application: ƒ Positive cutting geometry of the indexable insert
For copy, longitudinal and face turning with KNUX ensures low cutting forces
indexable insert, 55° ƒ Broad range of use: suitable for both finishing and
roughing operations
Execution:
ƒ Precision-manufactured steel support, burnished, Technical Data:
hardened, adjustable clamp, type K, working angle ƒ l2: 34 mm
93°, tip angle 55°, clearance angle 0° ƒ Suitable for indexable inserts: KNUX 1604..
Advantage:
ƒ For copy, longitudinal and face turning particularly
on low-performance machines f b
h1 h
30°
l2
l1
Tool design Right Left
ISO name h=h1 (mm) b (mm) l1 (mm) f (mm) 17825... 17825...
ID no. ID no.
CKJN R/L 2020 K16 20 20 125 30 010 O. R. 011 O. R.
CKJN R/L 2525 M16 25 25 150 32 015 O. R. 016 O. R.
CKJN R/L 3225 P16 32 25 170 32 020 O. R. 021 O. R.
CKJN R/L 3232 P16 32 32 170 40 030 O. R. 031 O. R.
Unit price, €
Prod. group 107
