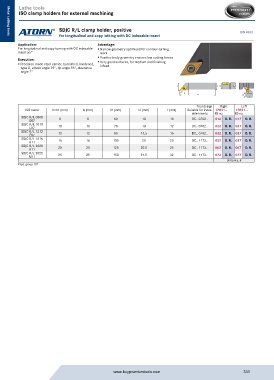

Page 331 - Buy Premium Tools ATORN Catalogue

Lathe tools
ISO clamp holders for external machining

SDJC R/L clamp holder, positive DIN 4983
for longitudinal and copy lathing with DC indexable insert
Metal cutting tools
Metal cutting tools
Application: Advantage:
For longitudinal and copy turning with DC indexable ƒ Narrow geometry optimised for contour-turning
insert 55° work
Execution: ƒ Positive body geometry ensures low cutting forces
ƒ Precision-made steel carrier, burnished, hardened, ƒ Very good surfaces, for medium and finishing
infeed
type D, attack angle 93°, tip angle 55°, clearance
angle 7°

f b h1 h
l2
l1
Tool design Right Left
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for index- 17831... 17831...
able inserts ID no. ID no.
SDJC R/L 0808 8 8 60 13 10 DC.. 0702.. 012 O. R. 017 O. R.
D07
SDJC R/L 1010 10 10 70 13 12 DC.. 0702.. 022 O. R. 027 O. R.
E07
SDJC R/L 1212 12 12 80 14.5 16 DC.. 0702.. 032 O. R. 037 O. R.
F07
SDJC R/L 1616 16 16 100 20 20 DC.. 11T3.. 052 O. R. 057 O. R.
H11
SDJC R/L 2020 20 20 125 20.5 25 DC.. 11T3.. 062 O. R. 067 O. R.
K11
SDJC R/L 2525 25 25 150 21.5 32 DC.. 11T3.. 072 O. R. 077 O. R.
M11
Unit price, €
Prod. group 107
