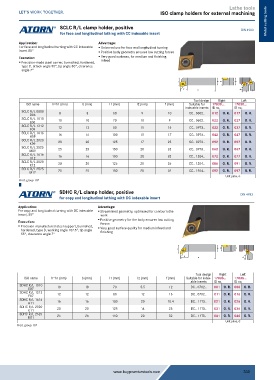

Lathe tools
ISO clamp holders for external machining

SCLC R/L clamp holder, positive DIN 4983 Metal cutting tools
for face and longitudinal lathing with CC indexable insert
Application: Advantage:
For face and longitudinal turning with CC indexable ƒ Universal use for face and longitudinal turning
insert 80° ƒ Positive body geometry ensures low cutting forces
Execution: ƒ Very good surfaces, for medium and finishing
ƒ Precision-made steel carrier, burnished, hardened, infeed
type C, attack angle 95°, tip angle 80°, clearance
angle 7°

f b h1 h
l2
l1
Tool design Right Left
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for 17830... 17830...
indexable inserts ID no. ID no.
SCLC R/L 0808 8 8 60 9 10 CC.. 0602.. 012 O. R. 017 O. R.
D06
SCLC R/L 1010 10 10 70 10 9 CC.. 0602.. 022 O. R. 027 O. R.
E06
SCLC R/L 1212 12 12 80 15 16 CC.. 09T3.. 032 O. R. 037 O. R.
F09
SCLC R/L 1616 16 16 100 15 17 CC.. 09T3.. 042 O. R. 047 O. R.
H09
SCLC R/L 2020 20 20 125 17 25 CC.. 09T3.. 052 O. R. 057 O. R.
K09
SCLC R/L 2525 25 25 150 20 32 CC.. 09T3.. 062 O. R. 067 O. R.
M09
SCLC R/L 1616 16 16 100 20 32 CC.. 1204.. 072 O. R. 077 O. R.
H12
SCLC R/L 2020 20 20 125 20 25 CC.. 1204.. 086 O. R. 091 O. R.
K12
SCLC R/L 2525 25 25 150 20 32 CC.. 1204.. 092 O. R. 097 O. R.
M12
Unit price, €
Prod. group 107
SDHC R/L clamp holder, positive DIN 4983
for copy and longitudinal lathing with DC indexable insert
Application: Advantage:
For copy and longitudinal turning with DC indexable ƒ Streamlined geometry, optimised for contour lathe
insert, 55° work
Execution: ƒ Positive geometry for the body ensures low cutting
forces
ƒ Precision-manufactured steel support, burnished, ƒ Very good surface quality for medium infeed and
hardened, type D, working angle 107.5°, tip angle finishing
55°, clearance angle 7°

b h1 h
f
l2
l1

Tool design Right Left
ISO name h=h1 (mm) b (mm) l1 (mm) l2 (mm) f (mm) Suitable for index- 17835... 17835...
able inserts ID no. ID no.
SDHC R/L 1010 10 10 70 5.5 12 DC.. 0702.. 001 O. R. 006 O. R.
E07
SDHC R/L 1212 12 12 80 12 16 DC.. 0702.. 011 O. R. 016 O. R.
F07
SDHC R/L 1616 16 16 100 20 10.4 DC.. 11T3.. 021 O. R. 026 O. R.
H11
SDHC R/L 2020 20 20 125 14 25 DC.. 11T3.. 031 O. R. 036 O. R.
K11
SDHC R/L 2525 25 25 150 20 32 DC.. 11T3.. 041 O. R. 046 O. R.
M11
Unit price, €
Prod. group 107
